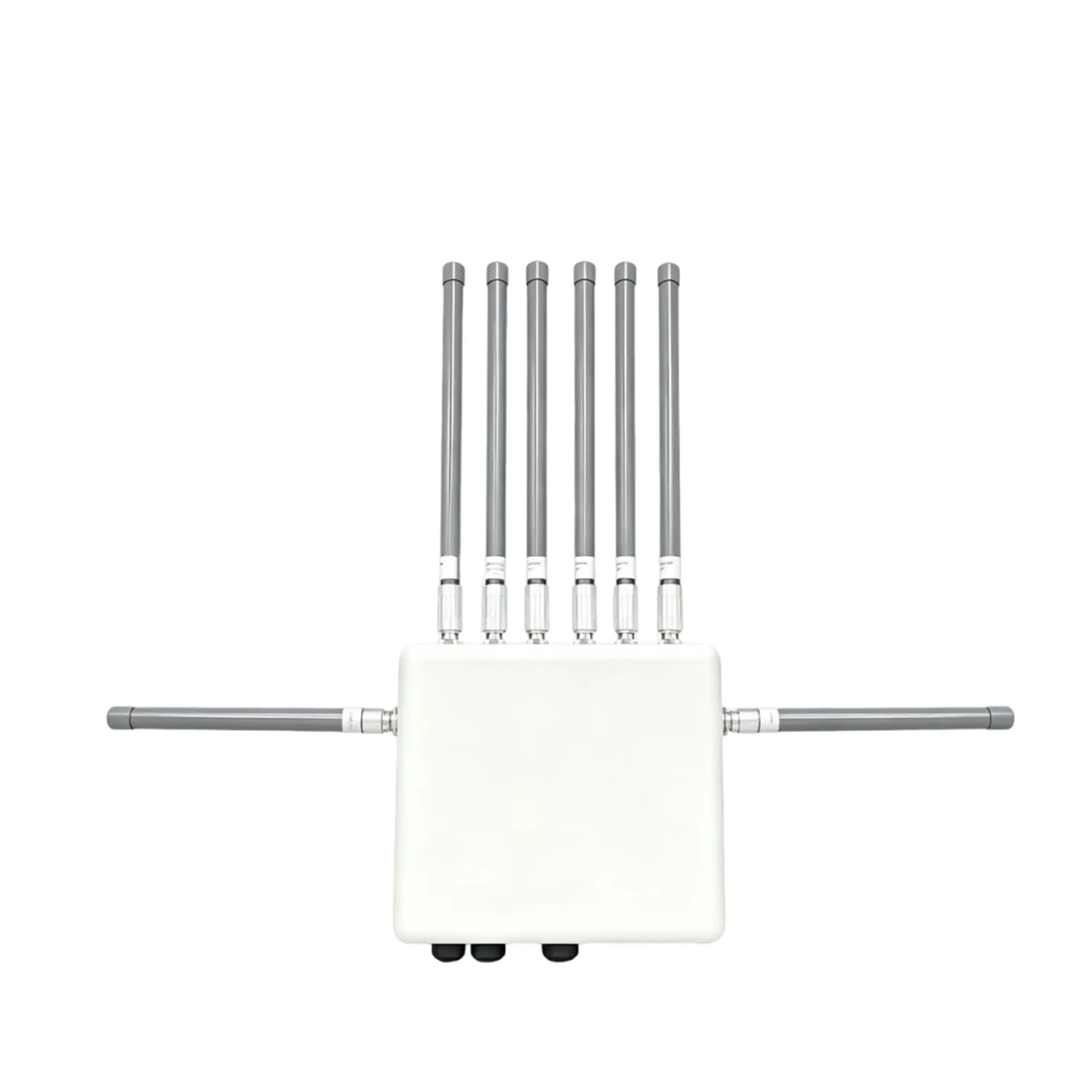

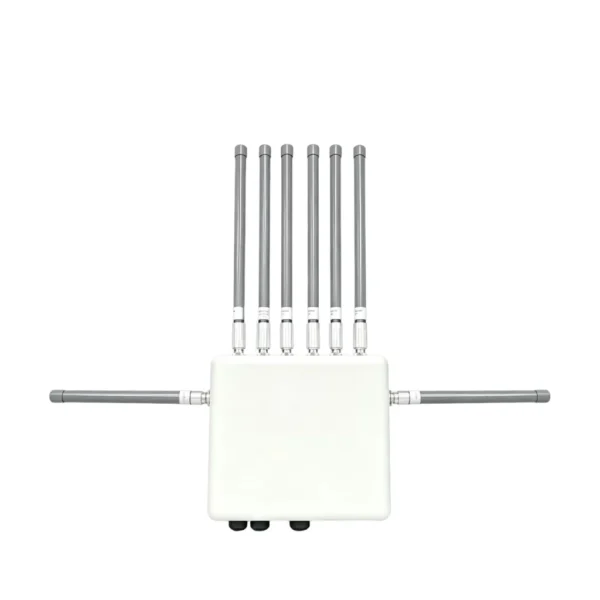

Super WiFi Router
Industrial outdoor 5G CPE wireless router with 5G cellular and WiFi6 dual-band coverage, powered by MT7981A chipset up to 3000Mbps. IP67 waterproof, 6kV lightning protection, supports pole/wall mounting and module replacement. Ideal for farms, construction sites and scenic spots, OEM/ODM available for bulk engineering procurement.
This product is an outdoor industrial grade 5G CPE wireless router that integrates 5G cellular and WiFi6 dual band wireless coverage. It comes standard with a mobile RM500u 5G module and supports on-demand replacement of various 4G/5G communication modules. Equipped with MT7981A series dual core 1.2GHz chipset, the maximum wireless speed of the whole machine is 3000Mbps, and WiFi6 performance is four times that of WiFi5 devices; Equipped with a built-in 5GHz RF amplification module and 8 6dBi fiberglass omnidirectional antennas, the WiFi coverage radius in open environments can reach up to 1.2 kilometers. The whole machine adopts an integrated steel casting shell, IP67 dustproof and waterproof, equipped with 6kV lightning protection and 15kV electrostatic protection, supports wide temperature stable operation, and is compatible with both pole and wall mounting installation methods. The device supports 5G card insertion, wired broadband dual link access, and can quickly set up a large-scale outdoor LAN without laying fiber optic cables. It is suitable for various harsh outdoor scenarios such as parks, farms, construction sites, and scenic spots, and supports OEM/ODM/JDM software and hardware customization, suitable for engineering and foreign trade bulk procurement.
| Item | Parameter |
|---|---|
| Main control platform | MT7981A+MT7976D+MT7531AE, dual‑core 1.2GHz, equipped with DE1123+DFEM0027_24 RF amplification module |
| Memory storage | Standard 512MB DDR3+128MB SPI NAND, optional 16GB EMMC storage |
| Communication module | Standard Quectel RM500u 5G module, replaceable Cat4/6/12/16/20 specification 4G/5G module |
| Interface | 2 Gigabit LAN ports, DC 12V/5A power supply, 8‑way N‑type antenna interface, reset button |
| Indicator light | 6‑way status LED (POWER/SYS/2.4G WiFi/5G WiFi/Internet/5G signal) |
| Antenna | 8 detachable 6dBi fiberglass omnidirectional antennas (2 2.4G, 2 5.8G, 4 5G NR) |
| Size & Installation method | 280 × 250 × 75mm; dual‑purpose pole and wall mounted |
| Protection certification | IP67 dustproof and waterproof, 6kV lightning protection, 15kV electrostatic protection, withstand 150mph wind pressure; CE and RoHS certification |
| Temperature and humidity | Working: -20 ℃~55 ℃, Storage: -50 ℃~75 ℃, 0%~100% non‑condensing |
Urban outdoor wide coverage: city squares, scenic spots, outdoor parking lots, pedestrian streets, sports venues
Agricultural and animal husbandry scenarios: remote monitoring of large-scale farms, pastures, orchards, fish ponds, and IoT data collection
Industrial Park Scenarios: Industrial Park, New Energy Plant Area, Mining Area, Sewage Treatment Plant Industrial Automation Wireless Communication
Temporary engineering scenarios: construction sites, field operations, photovoltaic parks, remote monitoring point network feedback
Special industry scenarios: public safety private network, emergency communication, dedicated WiFi link for drone isolation
