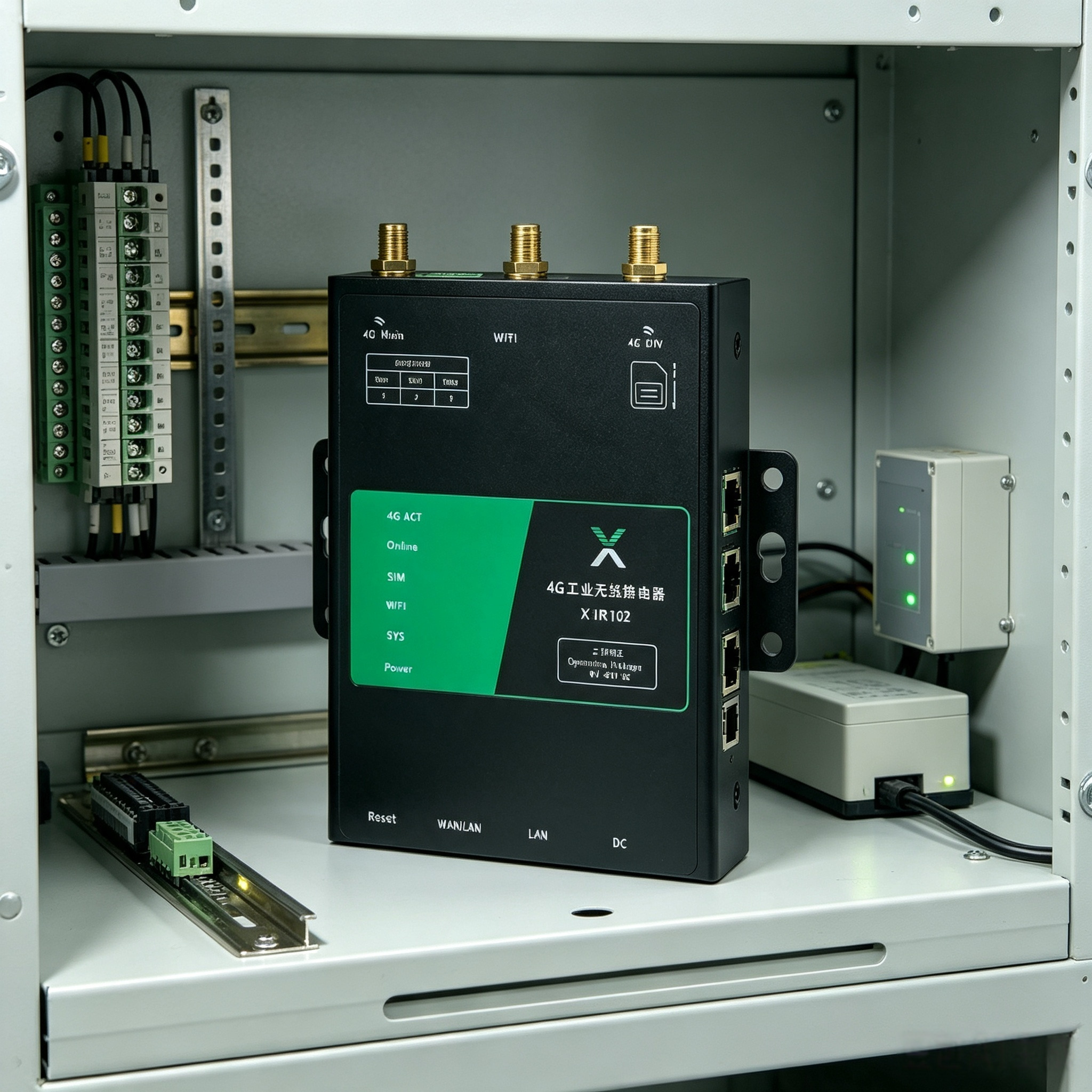

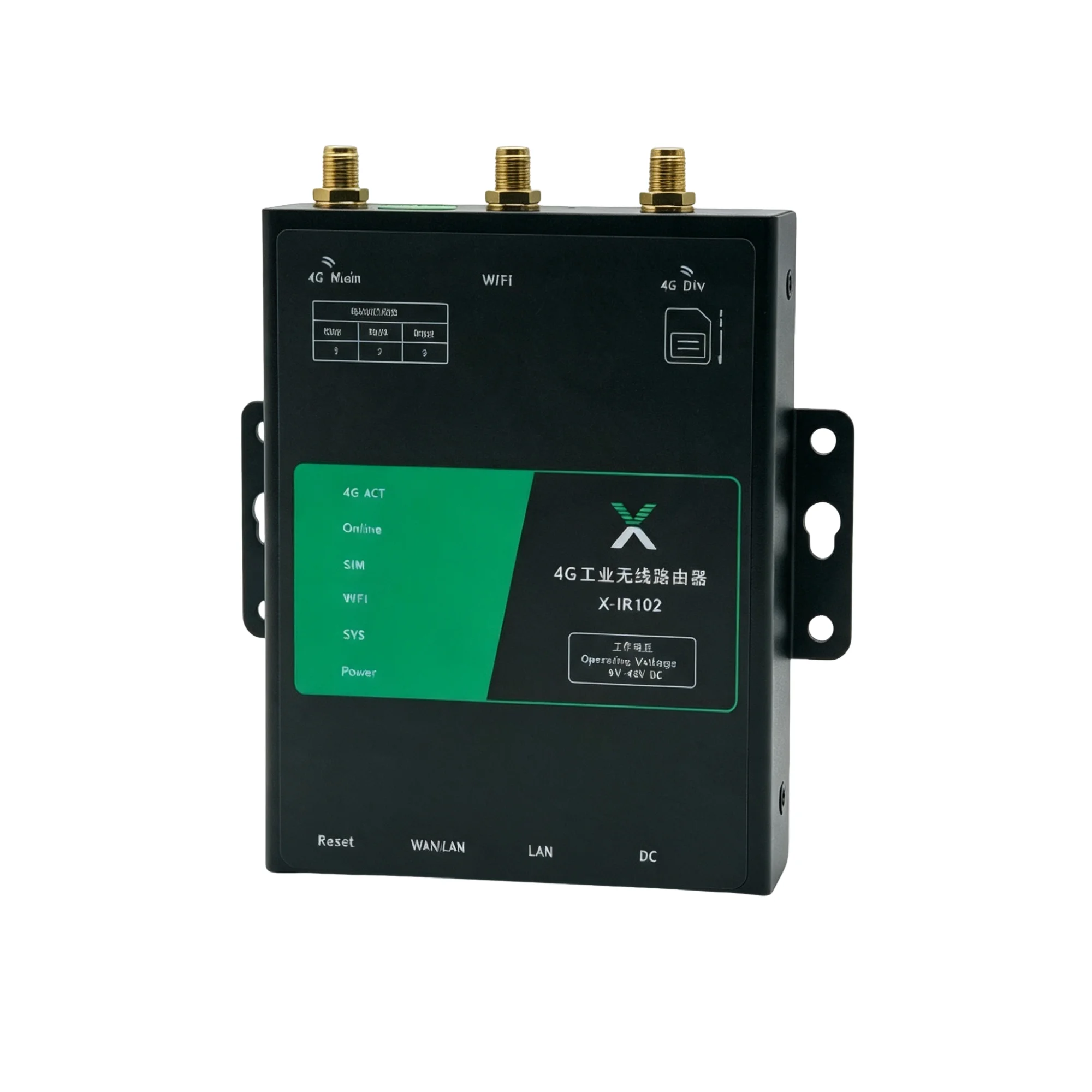

Industrial grade 2-port 4G CPE
Industrial Grade 2-Port 4G CPE is an industrial 4G wireless router integrating 4G, Wi-Fi and multi-protocol VPN. Adopting metal housing and full industrial design, it supports wide temperature range (-20°C~70°C), wide voltage power supply and cloud remote management. It provides stable, reliable and secure network connection for unattended industrial & commercial IoT sites.
Share to:
1.Product Overview
Industrial Grade 2-Port 4G CPE is a 4G wireless router for industrial and commercial IoT scenarios. It integrates 4G cellular network, Wi-Fi and VPN technologies to deliver simple, reliable and secure internet access for unattended sites. Built with full industrial-grade chips and an integrated metal housing, it supports hardware & software watchdog and multi-level link detection to ensure stable communication and permanent online status. Centralized remote management is available via cloud platform.
2.Key Features
• 4G Cellular Access: Cat1 / Cat4 supported, backward compatible with 2G/3G
• Flexible Networking: 2 × 10/100M Ethernet ports, WAN/LAN switchable
• Fast Wi-Fi Networking: 802.11b/g/n, up to 150Mbps, WEP/WPA/WPA2 supported
• Data Security: IPsec VPN supported to secure data transmission
• Comprehensive Security Policy: SPI stateful inspection, DoS protection, IP-MAC binding, ACL and other firewall functions
• Industrial Design: Operating temperature -20°C ~ 70°C, wide voltage power supply, metal housing
3.Materials & Construction
• Housing: Integrated metal housing for easy installation
• Dimension: 103.2 × 81.6 × 26.2 mm
• Ingress Protection: IP30
• Interfaces: 2 × 10/100M Ethernet (WAN/LAN switchable), DC power port (DC 5-40V, over-current protection), reset button
• Optional Interfaces: 1 × RS232 / 485 / TTL serial port, 2 × I/O
• SIM Slot: 1 drawer-type SIM slot, 2 eSIM
• Antenna Connector: 2 × SMA for 4G, 1 × SMA for Wi-Fi
• LED Indicators: 4G ACT, 4G Online, SIM, WiFi, SYS, Power
4.Product Advantages
• Flexible Interconnection: Rich industrial interfaces (serial, I/O) compatible with various field devices
• Remote Management: Device Manager cloud platform for batch management of device status, configuration & alarms
• Security & Compliance: Multi-VPN protocols (IPsec / L2TP / GRE / OpenVPN / PPTP), multi-layer firewall, EMC Level 2
• Built-in DTU: TCP/UDP transparent transmission, Modbus RTU to Modbus TCP bridge
| Item | Specification |
|---|---|
| Network Standard | 4G LTE (TDD/FDD), compatible with 2G/3G; Wi-Fi 802.11b/g/n |
| Wireless Speed | Wi-Fi up to 150Mbps |
| Ethernet | 2 × 10/100Mbps (WAN/LAN switchable) |
| Processor / Memory | Industrial embedded processor; RAM 64MB DDR2; Flash 16MB |
| Power Supply | DC 5~40V (over-current protection) |
| Temp. Range | Operating: -20°C ~ 70°C; Storage: -40°C ~ 85°C; Humidity 5%~95% non-condensing |
| Ingress Protection | IP30, metal housing |
| Power Consumption | Standby 80~90mA@12V; Operating 100~120mA@12V; Peak 190mA@12V |
1.Application
• Smart commercial applications
• Bank ATM & self-service terminals
• Coffee vending machines, vending lockers, food pickup cabinets & parcel lockers
• Digital signage
• Smart city, municipal heating / water / gas supply
• Smart bus stop signs, urban security monitoring, smart parking
