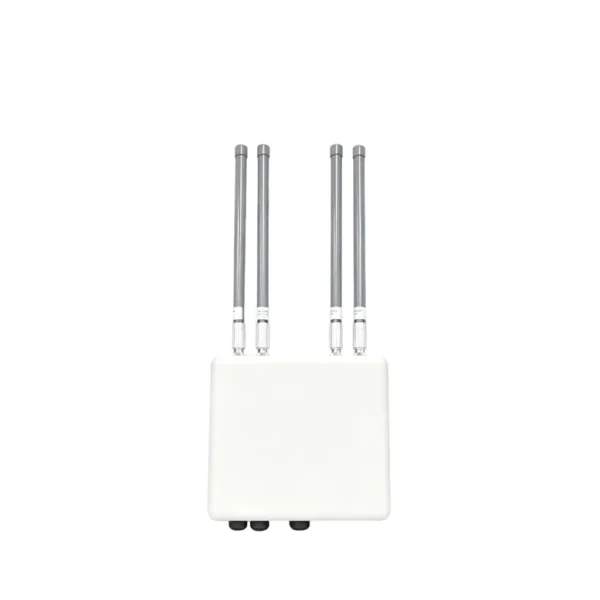

Outdoor super wireless router
Outdoor Super Wireless Router is a dual-band Wi-Fi 6 high-power outdoor wireless AP. It adopts dual-core 1.2GHz CPU with maximum 3000Mbps wireless speed. The 5GHz omnidirectional 5dBi antenna supports coverage radius over 1.2km. With integrated cast steel housing, IP67 protection, -20°C~55°C wide temperature range and multiple working modes, it delivers industrial reliability and deployment flexibility for outdoor wide-area coverage and long-distance transmission.
Share to:
1.Product Overview
Outdoor Super Wireless Router is a professional dual-band Wi-Fi 6 high-power outdoor wireless AP. Equipped with high-performance MTK chip platform and dual-core 1.2GHz CPU, it delivers wireless speed up to 3000Mbps (574Mbps for 2.4G + 2402Mbps for 5G). Its 5GHz band adopts high-performance RF front-end module, fitted with omnidirectional 5dBi antennas, achieving coverage radius over 1.2km. It enables high-quality signal coverage over large areas with single-point deployment, ideal for outdoor environments requiring high-density user access and long-distance data transmission.
2.Key Features
• Dual-band Wi-Fi 6 (802.11ax), max wireless rate up to 3000Mbps
• Wide Coverage: 5GHz omnidirectional 5dBi antenna, coverage radius ≥1.2km
• Heavy-duty Protection: Integrated cast steel housing + military-grade components, IP67 rated
• Flexible Deployment: Fat/Thin unified mode, supports AP / Router / Repeater / Bridge working modes
• High-density Concurrent Access: Multi-service concurrency & seamless roaming supported
• Optional External Antennas: 4 detachable omnidirectional 5dBi antennas (2×2.4G, 2×5G)
3.Materials & Construction
• Housing: Integrated cast steel housing, military-grade components
• Chipset: MT7981A + MT7976D + MT7531AE, dual-core 1.2GHz; 5G Wi-Fi power amplifier module
• Memory: DDR3 512MB; SPI NAND Flash 128MB (16GB eMMC optional)
• Interfaces: 1 × DC input, 1 × GE (WAN), 1 × GE (LAN), 4 × N-type antenna ports, Reset button
• Antennas: 4 detachable external omnidirectional 5dBi gain antennas (2×2.4G, 2×5G)
• LED Indicators: POWER, SYS, 2.4G Wi-Fi, 5G Wi-Fi, Internet
• Dimension: 280 × 250 × 75 mm
• Installation: Pole mounting, wall mounting
• Environmental Protection: 6kV lightning protection, 15kV ESD protection, wind load 150mph
4.Product Advantages
• Ultra-wide Coverage: Single AP realizes seamless coverage for large parks and plazas, greatly reducing AP deployment quantity
• Excellent Stability: Powerful signal processing & anti-interference capability, stable transmission even at signal edge
• Wi-Fi 6 Multi-service Concurrency: Easily handles video surveillance, mobile office, IoT terminals and other scenarios
• Industrial Reliability: Top IP67 rating, dustproof, waterproof and wide temperature tolerance, designed for harsh outdoor environments
• Convenient Networking: Seamless roaming support, zero-blind-zone coverage for large sites
| Item | Specification |
|---|---|
| Wireless Standard | IEEE 802.11a/b/g/n/ac/ax; 802.3 / 802.3u / 802.3x |
| Frequency Band | 2.4GHz (2412~2472MHz), 5GHz (5180~5240 / 5250~5350 / 5745~5825MHz) |
| Wireless Rate | 2.4G 2T2R up to 574Mbps; 5G 2T3R up to 2402Mbps (Total ~3000Mbps) |
| Channel Bandwidth | 2.4G: 20/40MHz; 5G: 20/40/80/160MHz |
| Transmit Power | 5G: approx.27±1.5dBm; 2.4G approx.23±1.5dBm (802.11b) |
| Working Modes | AP / Router / Repeater / Bridge |
| Wireless Security | WEP, WPA-PSK, WPA2-PSK, WPA3-SAE, etc. |
| Power Supply | DC 12V / 4A |
| Ingress Protection | IP67 |
| Temperature Range | Operating: -20°C ~ 55°C; Storage: -50°C ~ 75°C; Humidity: 0%~100% non-condensing |
1.Application
• Wide-area wireless coverage: smart city plazas, theme parks, scenic spots
• Large commercial coverage: shopping malls, industrial parks, stadiums, underground parking lots
• High-demand industries: public security wireless network, emergency communication systems Field Test Data: 62~108Mbps measured speed at 1.2km with omnidirectional 5dBi antenna
