Indoor Cat6 UTP Cable
This is indoor Cat6 UTP network cable fitted with PE cross‑separator and high‑purity oxygen‑free copper conductors. Multiple jacket materials are optional. It supports Gigabit transmission and is suitable for Gigabit network cabling projects in general indoor environments.
1.Key Features
• High-purity oxygen-free copper conductors reduce signal loss and ensure gigabit network performance
• PE cross separator separates the four pairs of wires to lower crosstalk
• HDPE insulation, supports various sheath options including PVC, low-smoke halogen-free LSZH, and TPU, suitable for different indoor conditions
• Raw materials meet ROHS environmental standards, controlling harmful substances
• Clear installation pulling force and bending radius parameters make cabling work easier
• 305-meter box packaging, ideal for large-scale indoor gigabit network projects
2.Materials & Construction
• Built with industry-standard materials and manufacturing processes for export-ready quality
3.Product Advantages
• Cost-effective solution for engineering and project bulk purchasing
• OEM/ODM customization and stable supply chain support
| Item | Parameter |
|---|---|
| Product Model | Indoor Cat6 UTP Cable |
| Compliance Standard | ISO/IEC 11801, ANSI/TIA‑568.2‑D, YD/T1019‑2013 |
| Conductor Spec. | 23AWG, high‑purity oxygen‑free copper (99.9% purity) |
| Insulation Material | HDPE |
| Filler Material | PE cross‑separator |
| Outer Jacket Material | PVC, LSZH, TPU optional |
| Operating Temperature | ‑20℃ ~ 75℃ |

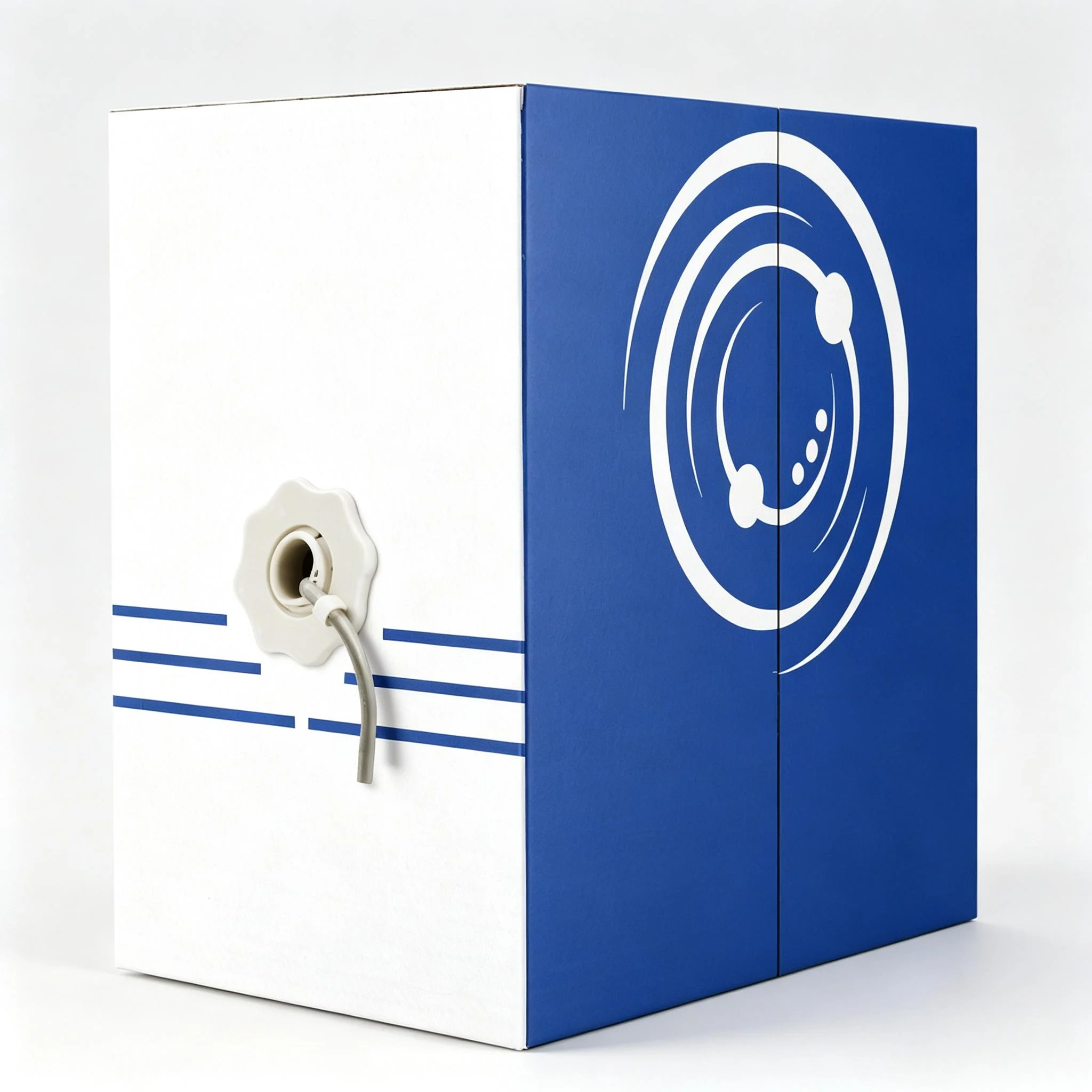

| Packing Spec. | 305 m per box |
| Max Installation Tension | 110N |
| Min Installation Bending Radius | 8 × cable outer diameter |
| Environmental Standard | RoHS compliant |
| Cable Appearance | Grey outer jacket |
1.Applications
• Office buildings and indoor gigabit structured cabling
• Home and hotel LAN setups
• Indoor monitoring system gigabit network cabling
• Campus and general server room network renovation projects
2.Package
• Product main unit
• Standard accessories kit
• User manual
• Color box/Outer carton
