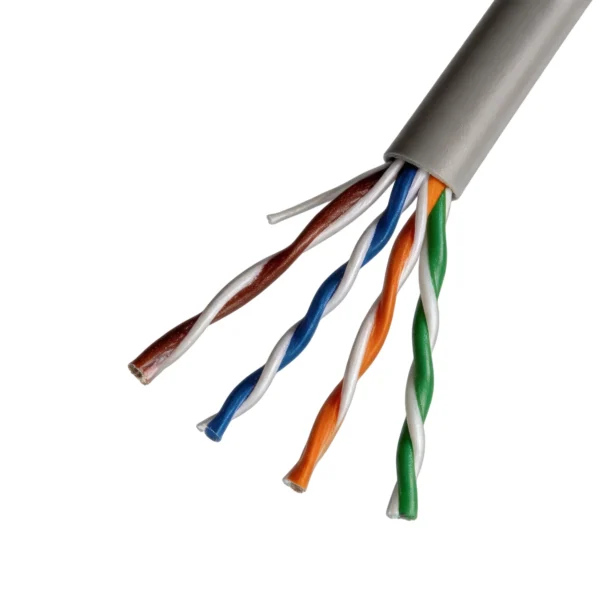

Indoor Cat5e UTP Cable
This is indoor Cat5e UTP network cable, built with high‑purity oxygen‑free copper conductors. Multiple jacket materials are optional. It supports 100‑Mbps transmission and complies with multiple communication industry standards, ideal for indoor network cabling projects.
1.Key Features
• High-purity oxygen-free copper conductors reduce signal loss and ensure stable network transmission
• HDPE insulation, with optional PVC, low-smoke halogen-free LSZH, and TPU jackets to suit different indoor environments
• 4-pair unshielded twisted structure reduces crosstalk
• Meets ROHS environmental standards, with controlled hazardous substances
• Clear installation pull and bending radius parameters for easier cabling work
• 305-meter box packaging, ideal for large-scale indoor network projects
2.Materials & Construction
• Built with industry-standard materials and manufacturing processes for export-ready quality
3.Product Advantages
• Cost-effective solution for engineering and project bulk purchasing
• OEM/ODM customization and stable supply chain support
| Item | Parameter |
|---|---|
| Product Model | Indoor Cat5e UTP Cable |
| Compliance Standard | ISO/IEC 11801, ANSI/TIA‑568.2‑D, YD/T1019‑2013 |
| Conductor Spec. | 24AWG, high‑purity oxygen‑free copper (99.9% purity) |
| Insulation Material | HDPE |
| Outer Jacket Material | PVC, LSZH, TPU optional |
| Operating Temperature | ‑20℃ ~ 75℃ |

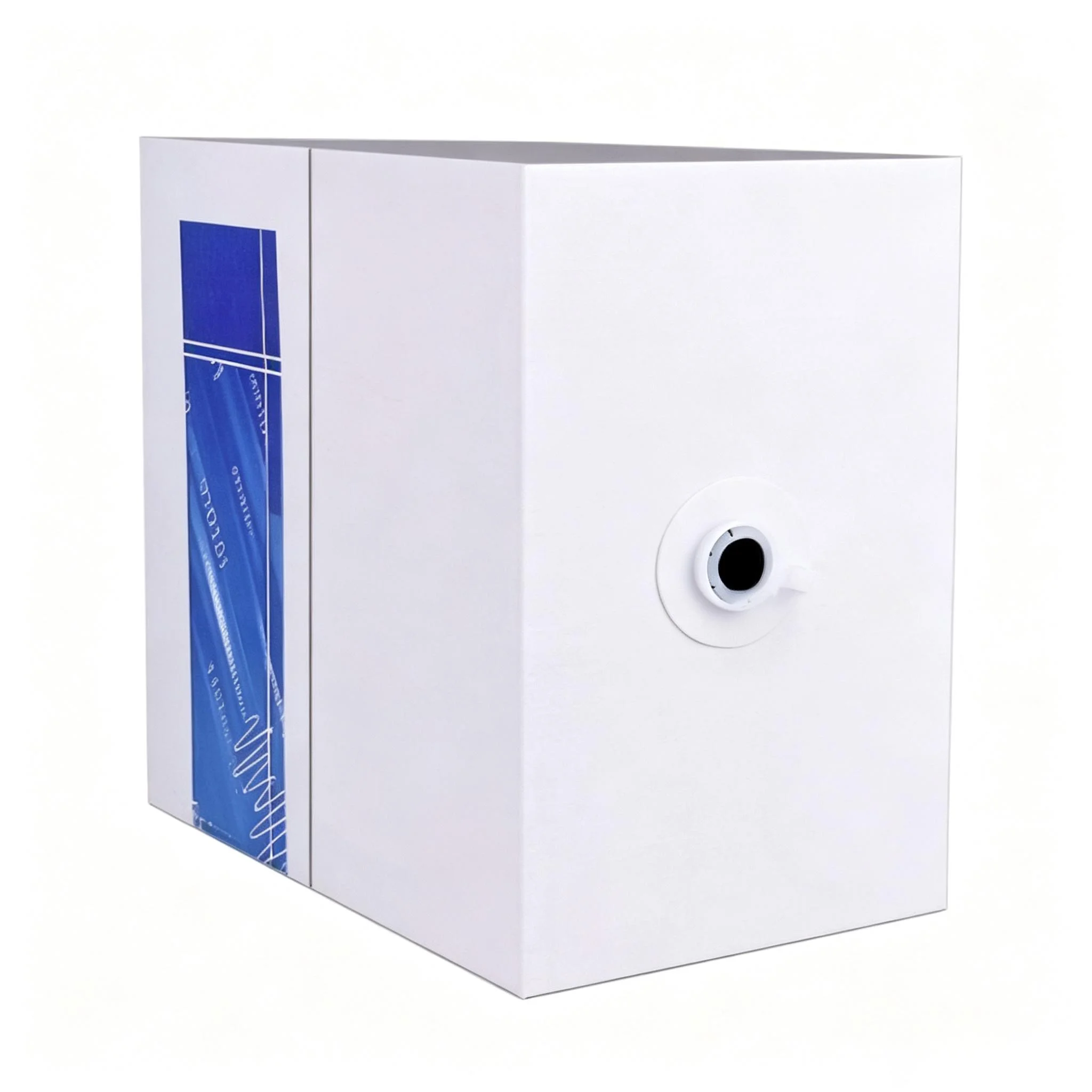

| Packing Spec. | 305 m per box |
| Max Installation Tension | 110N |
| Min Installation Bending Radius | 8 × cable outer diameter |
| Environmental Standard | RoHS compliant |
| Cable Appearance | Grey outer jacket |
1.Applications
• Network signal transmission
• Realize data communication connection for devices within local area network
• Indoor structured cabling for office buildings & commercial towers
• LAN networking for homes and hotels
• Network cabling for indoor monitoring systems
• Indoor network renovation projects for computer rooms and campuses
2.Package
• Product main unit
• Standard accessories kit
• User manual
• Color box/Outer carton
