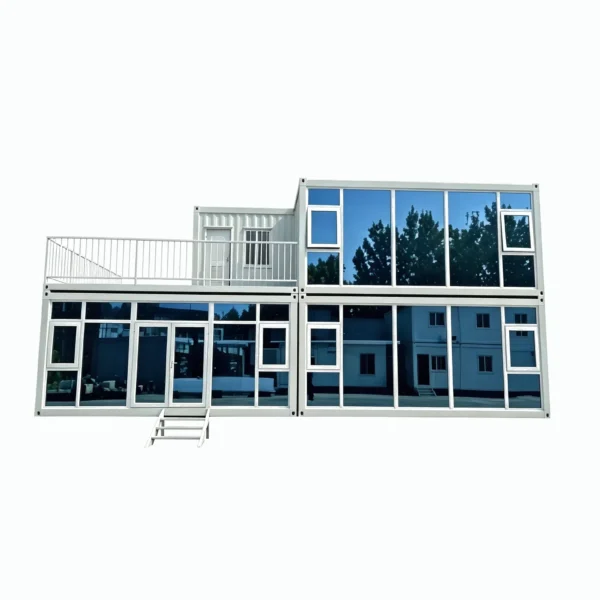

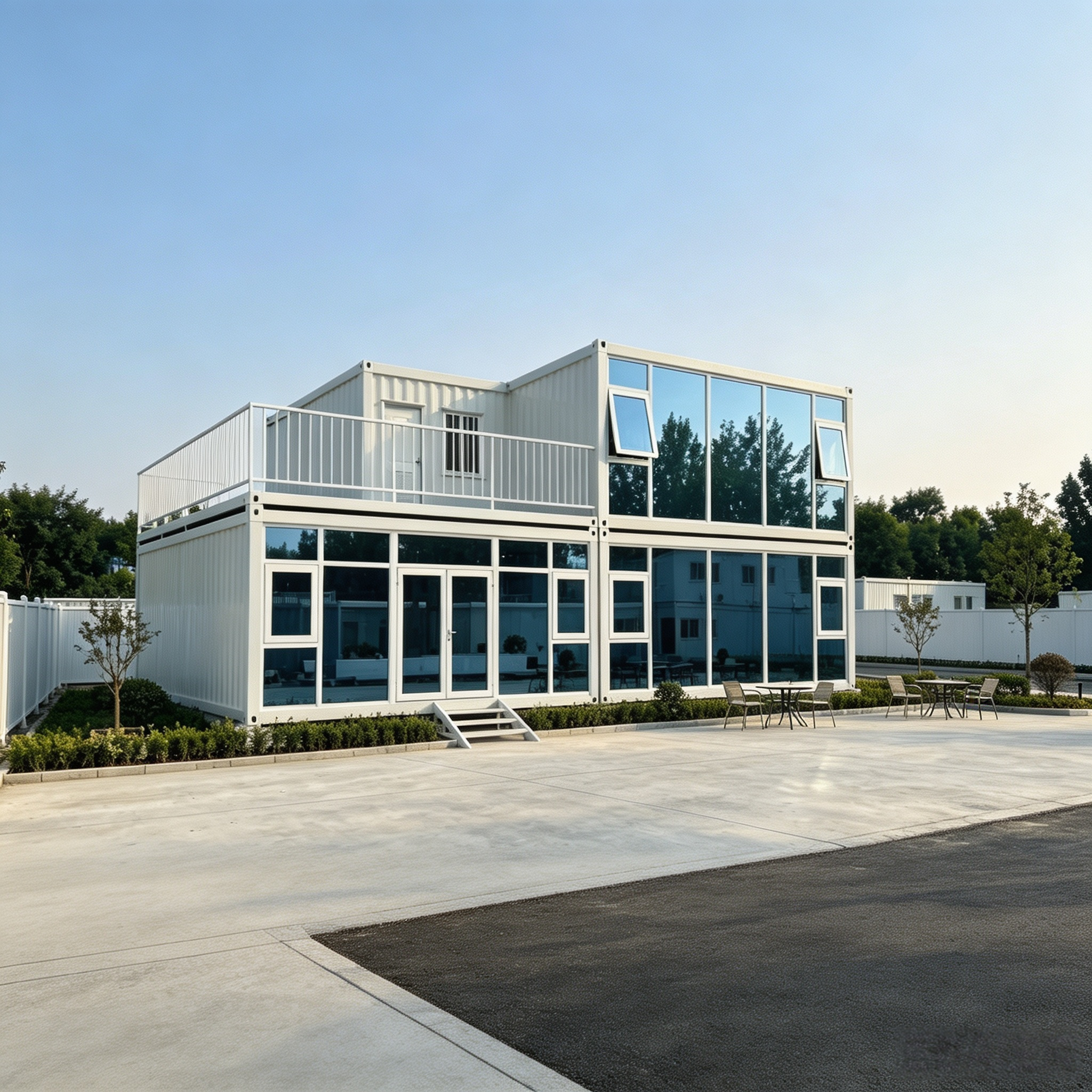

Two‑Story Glass Curtain Wall Modular Container Office
Two‑Story Glass Curtain Wall Modular Container Office: Modular combined construction. Standard units can be freely jointed and double‑stacked to arrange spaces such as offices, reception areas and meeting rooms as required. Built with light‑steel structure and insulated sandwich wall panels, it allows fast erection and repeated disassembly, suitable for camps, construction sites, emergency resettlement and other scenarios.
1.Product Overview
Two‑Story Glass Curtain Wall Modular Container Office adopts light‑steel prefabricated modular structure. Its main body consists of thickened galvanized steel frame and white insulated color‑steel sandwich panels. It supports rapid erection, detachable relocation and repeated utilization, and is widely suitable for temporary accommodation, office, camp and emergency resettlement scenarios.
2.Key Features
· Modular combination construction: Standard boxes can be freely assembled and stacked in double layers, allowing for on-demand planning of spaces such as offices, reception areas, conference rooms, etc
· Large area glass curtain wall design: coated floor to ceiling glass, sufficient indoor lighting, beautiful exterior facade, suitable for business and office scenes
· Second floor terrace layout: equipped with outdoor terrace and protective railings, providing leisure and outdoor communication space
· Factory prefabricated boxes: curtain walls, doors and windows, and basic interior decorations are pre installed in the factory and then lifted and assembled on-site to form the final product
· Insulated sandwich wall: The sandwich panel provides basic insulation and moisture resistance, meeting the needs of conventional climate office use
· Removable and reusable: The box can be disassembled, lifted, and transported, and can be reassembled and put into use in different locations.
3.Materials & Construction
· Main Frame: Thickened galvanized steel structural frame with rust prevention ability, supporting lifting, stacking, disassembly and transportation
· Wall Panel: white insulated sandwich color steel plate, with basic insulation, waterproofing, and sound insulation performance
· Door & Window: white aluminum alloy profiles, blue coated tempered floor to ceiling glass curtain walls, glass double doors, and hanging skylight windows
· Accessories: second floor terrace, white protective railing, simple entrance steps
· Interior Fittings: standard PVC anti slip flooring, factory can pre install basic circuits, sockets, lighting components
· Finish / Color: white box frame, white wall panels, paired with blue coated glass; Support customized appearance and color matching
· Structure: Standardized independent box modular splicing, can be horizontally combined, double-layer stacked, and freely matched with terrace and balcony layouts
4.Product Advantages
· Modular boxes can be freely combined with a double-layer stacking design, allowing for flexible planning of multiple offices and reception spaces
· The panoramic glass curtain wall has a modern and atmospheric appearance, meeting the needs of business image such as office, reception, and display
· Comes with a two-story terrace to expand outdoor usage space
· Factory prefabrication completes basic decoration, on-site hoisting and splicing, shortening the landing and use cycle
· The galvanized steel frame structure is stable and supports overall lifting. The box body can be disassembled, relocated, and reused
· Sandwich wall panels have basic insulation and waterproof properties, suitable for conventional outdoor office environments.
| Item | Parameter |
|---|---|
| Main Frame | Thickened galvanized steel frame, rust‑resistant; supports lifting, stacking, disassembly and transportation |
| Wall Panels | White insulated color‑steel sandwich panels, with basic heat‑insulation, waterproof and sound‑insulation performance |
| Doors, Windows & Curtain Wall | White aluminum alloy profiles, blue coated tempered floor‑to‑ceiling curtain walls, glass double doors, top‑hung daylight windows |
| Auxiliary Components | Second‑floor terrace, white safety railings, simple entrance steps |
| Interior Features | Standard anti‑slip PVC flooring; basic electric circuit, sockets and lighting assemblies can be pre‑installed at factory |
| Exterior Color | White unit frame and wall panels with blue coated glass; custom exterior color scheme available |
| Structure Type | Modular splicing of standard independent units; combinable horizontally or stacked double‑storey, flexible layout for terraces and balconies |
1.Applications
· Comprehensive Office Building for Engineering Projects
· Temporary Enterprise Office Center
· Park Reception & Exhibition Hall
· Cultural‑tourism Project Office Premises
· Field Project Command Post
· Startup Temporary Office Area
· Park Comprehensive Service Building
2.Package
· Light-steel prefabricated box/components ×1 set
· Door, window, guardrail and staircase assembly ×1 set
· Anti-slip PVC flooring and basic electrical fittings ×1 set
· Connection bolts and installation accessories ×1 set
· Installation manual ×1
· Packing: components knocked-down and packed, naked or film-wrapped
