Consumer Electronics PCBA Assembly
Turnkey consumer-electronics PCBA assembly: SMT, through-hole, functional test and integrated packing for volume orders.
1.Product Overview
Provides professional turnkey PCBA assembly services dedicated to consumer electronics manufacturing.Covers full one-stop procedures including SMT placement, through-hole soldering, functional testing and integrated packaging.
Optimized for high-volume production and fast-turnaround order fulfillment for consumer electronic products.Suitable for wearable devices, smart speakers, smart home devices and other mainstream consumer electronics.
2.Key Features

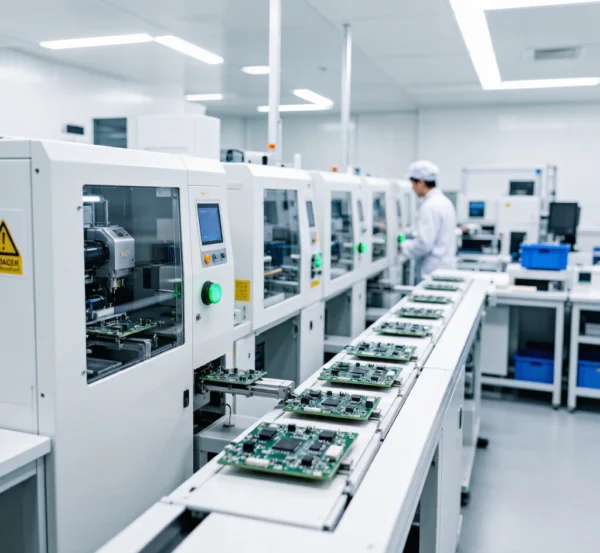

•Fully automated production line with a high hourly capacity of 40k pts/h for mass batch production.

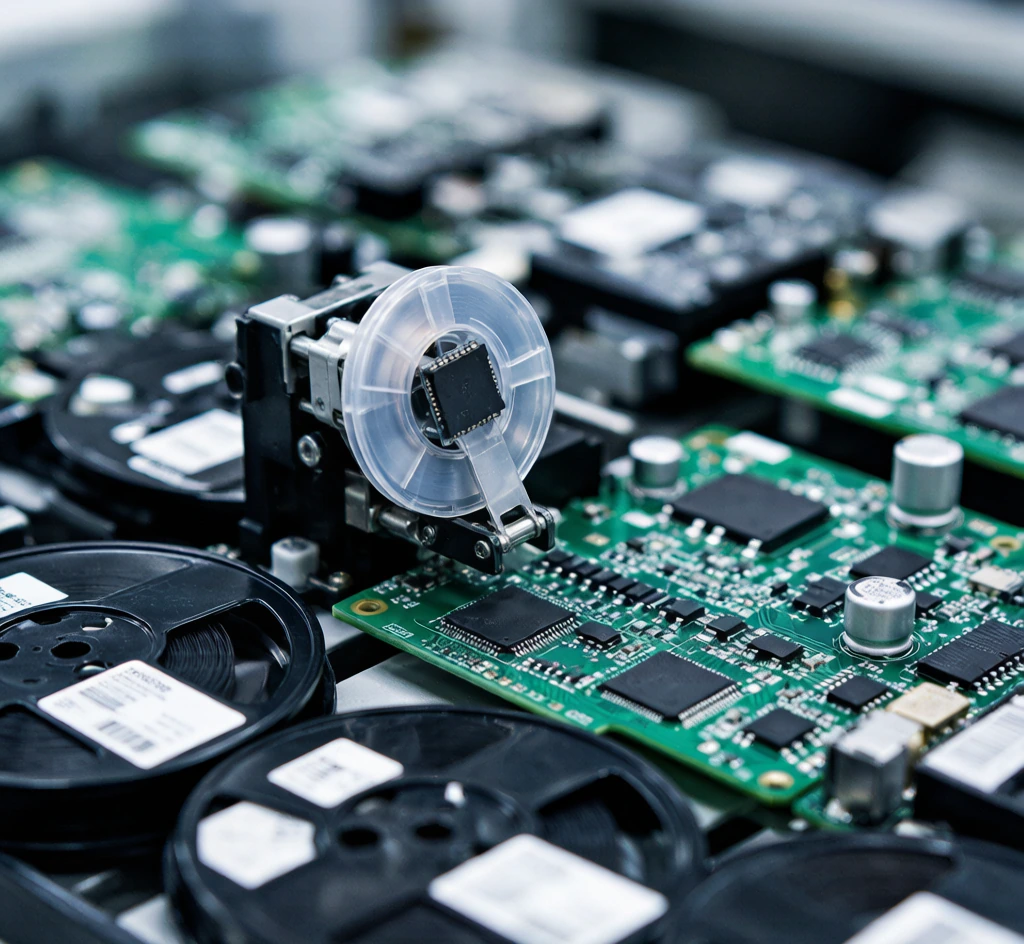

•Supports component mounting ranging from 0402 to BGA with precise placement accuracy of ±0.04mm.

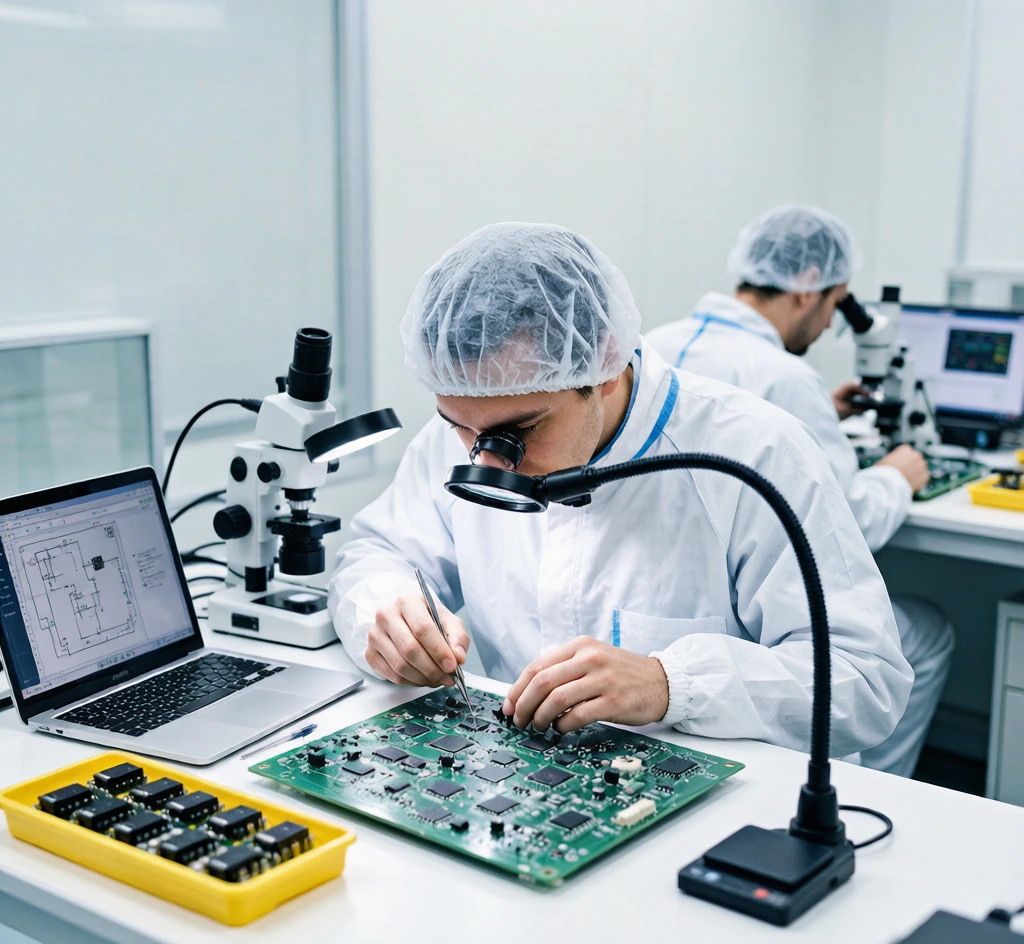

•Implements comprehensive quality control via AOI visual inspection and FCT functional testing.

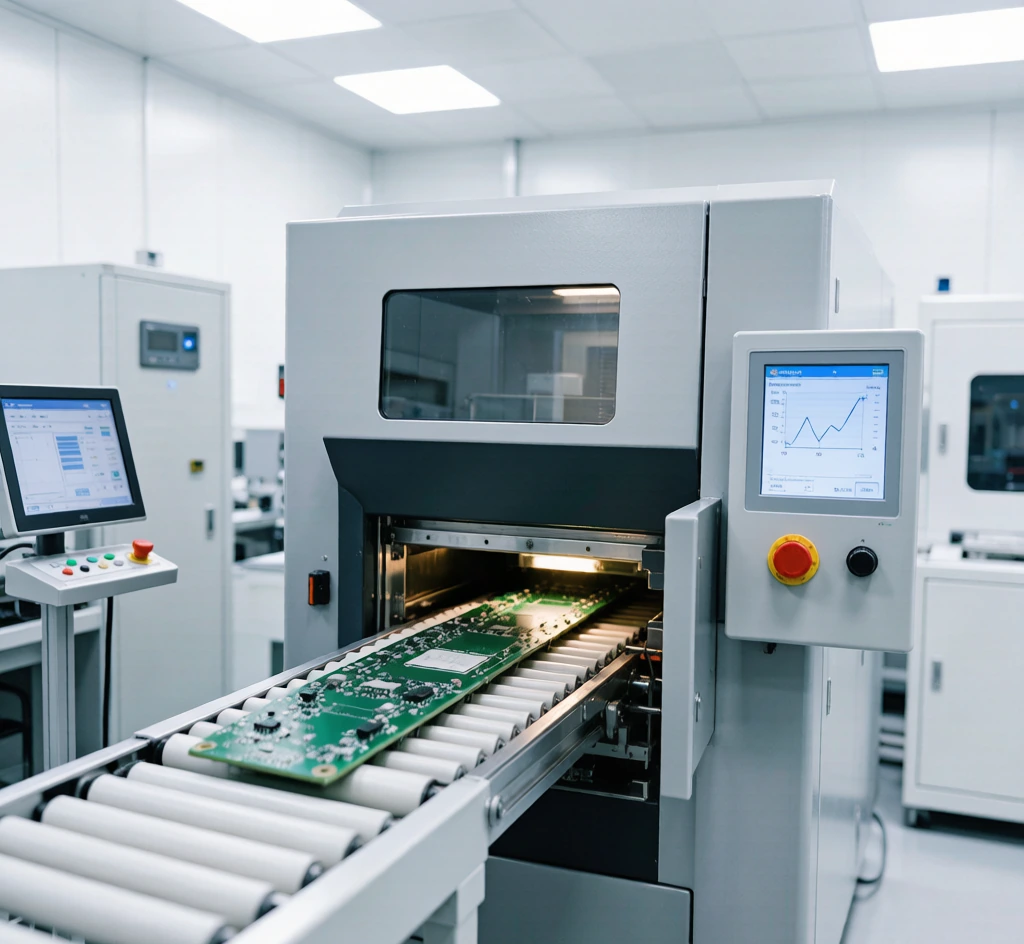

•Integrates SMT, through-hole processing and final packaging to realize full-process turnkey manufacturing.
3.Materials & Construction
•Adopts ESD vacuum-sealed moisture-barrier bags, trays and tape-and-reel packaging with desiccant for component protection.
•Standard outer carton dimension of 480×360×300mm for unified and standardized logistics packaging.
•Provides complete batch inspection reports and FCT test records for quality traceability.
•Supports customized labels and official packing lists based on customer personalized requirements.
4.Product Advantages
•High production efficiency and large output capacity to meet large-scale consumer electronics order demands.
•Precise automated mounting ensures consistent product quality and low assembly defect rate.
•Full-process testing mechanism guarantees stable functionality of finished PCBA products.
•Complete standardized packaging and customizable solutions support global shipping and brand standardization.
•One-stop turnkey service simplifies project management and shortens customer product launch cycle.
| Item | Content |
|---|---|
| Line | Fully Automated |
| Accuracy | ±0.04mm |
| Components | 0402~BGA |
| Capacity | 40k pts/h |
| QC | AOI + FCT |
1.Application
•Turnkey PCBA assembly service for consumer electronics
•Covers SMT placement, through-hole soldering, functional testing and integrated packaging
•Suitable for wearable devices, smart speakers and smart home products
•Adopts fully automated production line with ±0.04mm placement accuracy
•Supports components ranging from 0402 to BGA
•Production capacity up to 40k points per hour
•Implements AOI and FCT quality control
•Optimized for high-volume orders with fast turnaround
2.Package

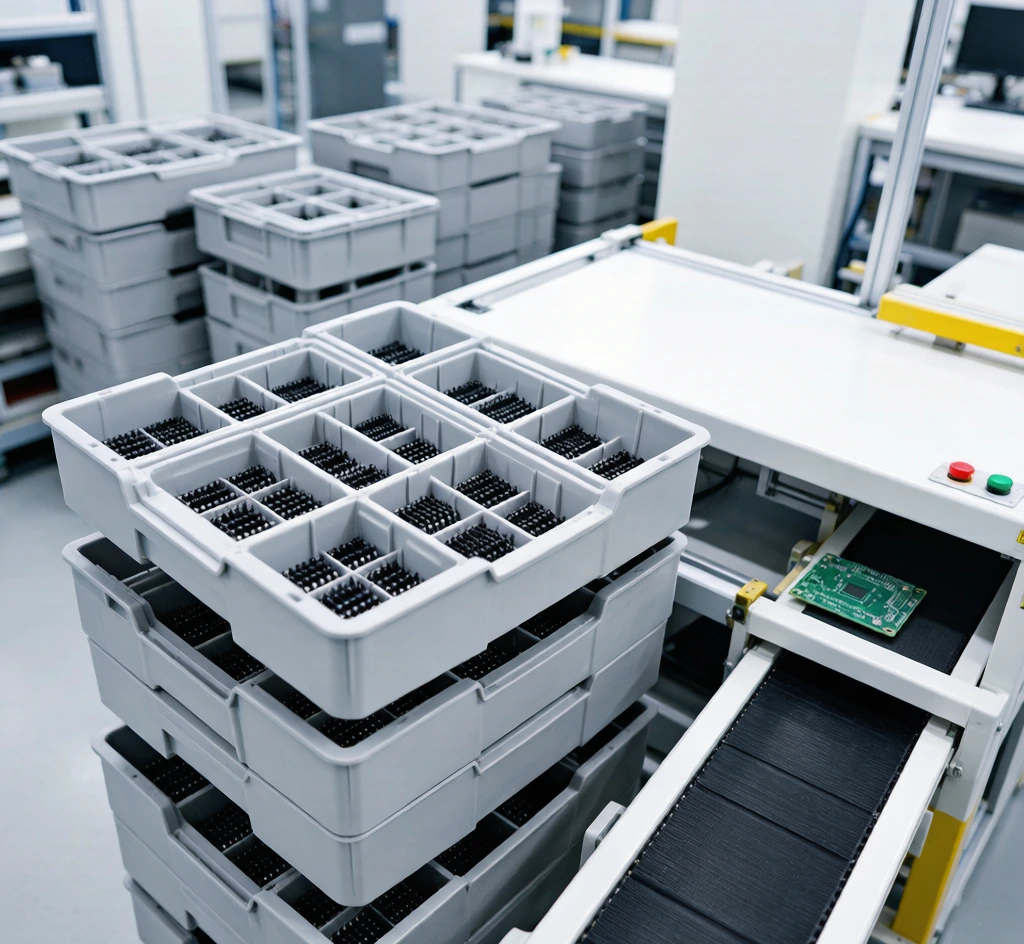

•Uses ESD vacuum-sealed moisture-barrier bags, trays or tape-and-reel packaging together with desiccant
•Master carton dimension: 480×360×300mm
•Supplied with inspection report and FCT test records
•Custom labels and packing lists can be provided upon request
