6-Way Automotive Fuse Block with Negative Bus and LED Indicators

1. Six-Circuit Fuse Distribution

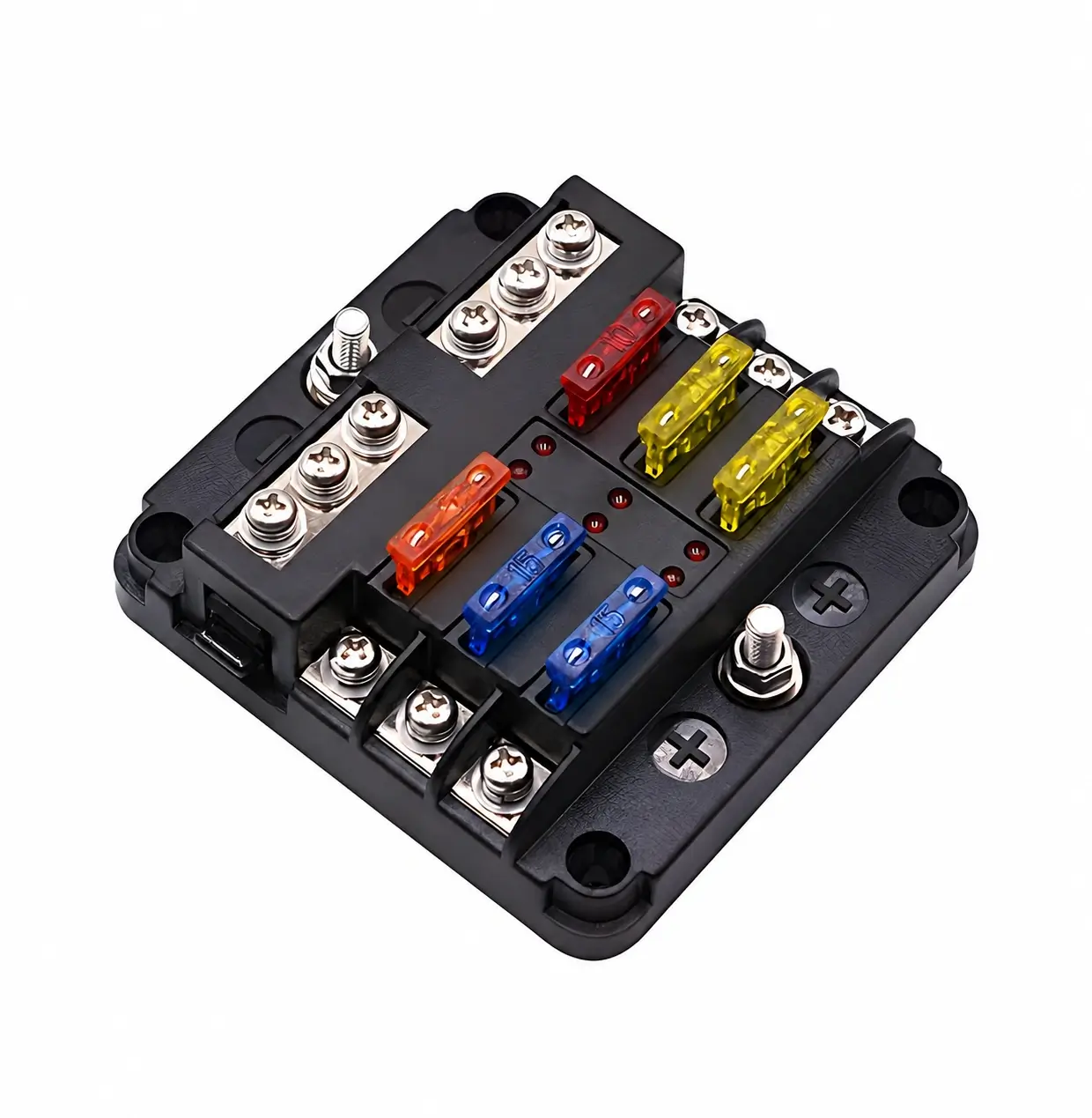

The KU-FV-14-001 brings six blade-fuse positions into a compact 87.75 x 85 x 36.5 mm housing. It gives installers one location for organizing the protection and wiring of multiple automotive accessory circuits.

Each circuit has its own fuse position and screw-terminal connection. The colored blade fuses shown in the product image illustrate the available positions and do not define the fuse ratings supplied with the product.

2. Integrated Negative Bus

The built-in negative bus keeps the return connections alongside the fused positive circuits. A main positive input stud marked “+” supplies the fuse positions, while the negative connection points provide a common location for circuit returns.

This layout reduces the need to install a separate negative bus bar when the fuse block is used in a compatible electrical system.

3. LED Indicators and Mounting

An LED indicator position is provided for each circuit. The terminals and indicators are arranged in rows so installers can identify and service individual circuits more easily.

Four mounting holes secure the fuse block to a suitable surface. Its compact footprint works well where several accessory circuits need to be grouped within a limited installation area.

4. Typical Uses

The YJ-FB606 is intended for organized circuit distribution in compatible automotive and low-voltage DC electrical systems. Typical uses include auxiliary lighting, vehicle accessories and other separately fused electrical loads.

Its six-circuit layout is suited to cars, trucks, RVs, campers, trailers, UTVs and ATVs when the fuse ratings and connected loads match the electrical system.
