5.12kWh 102Ah LiFePO4 Energy Storage Battery with CAN and RS485 Communication

1. 5.12kWh LiFePO4 Battery Module

The KU-OG-02-003 is a 5120 Wh lithium iron phosphate energy storage battery designed for compatible residential solar, backup-power and inverter systems. Its 1P16S modular configuration provides a rated capacity of 102 Ah within a battery voltage range of 40–58.4 V.

2. High-Current Battery Performance

• 100 A Maximum Charging Current: Supports compatible higher-current charging systems.
• 100 A Maximum Discharging Current: Supplies power to a suitably configured inverter or DC system.
• Verified Capacity Condition: Provides at least 100 Ah when the assembled battery is discharged at 0.2C.
• Controlled Charging Profile: Uses 0.5C constant-current charging followed by 58.4 V constant-voltage charging.
• Low Internal Resistance: The assembled battery-pack impedance is specified at ≤80 mΩ.

3. Communication and System Management

• Integrated BMS: Manages battery operation and performance within the configured electrical limits.
• Three Communication Interfaces: RS485, CAN and RS232 support integration with compatible inverters and energy-management equipment.
• LED Status Panel: Provides visual battery and operating-status information.
• Inverter Expansion: Supports communication with systems using up to six compatible parallel inverters.
• Compatibility Verification: Communication protocols and inverter firmware should be confirmed before ordering.

4. Installation and Operating Conditions

• Compact Housing: Measures 601.5 × 400 × 155 mm for space-conscious energy-storage installations.
• IP21 Protection: Intended for dry, protected indoor installation environments.
• Temperature Coverage: Recommended for charging from 0°C to +50°C and discharging from −15°C to +50°C.
• Environmental Range: Supports 0–90% relative humidity and installation at altitudes up to 3000 m.

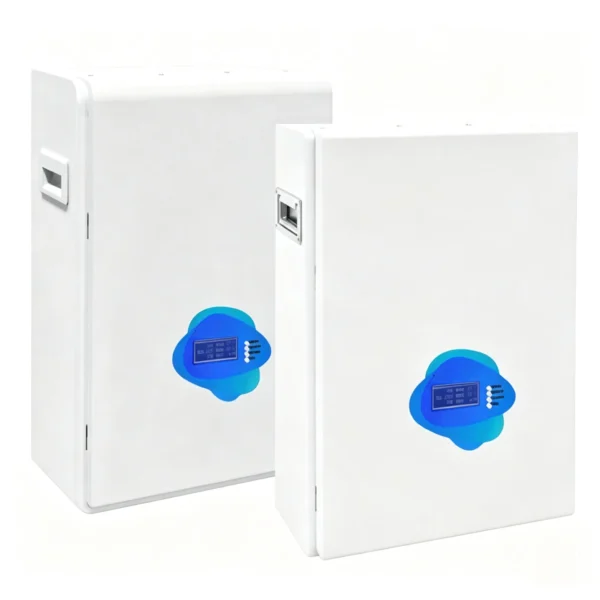

• White Exterior: Provides a clean appearance for residential and indoor equipment installations.

5. Service Life and Procurement Information

• Extended Cycle Life: Rated for at least 6,000 cycles at 25°C until approximately 80% end-of-life capacity.
• Five-Year Warranty: Supplied with a stated five-year warranty period.
• Multiple Packing Options: Available in standard carton or UN wooden-case packaging.
• Compliance Review: Supplier-declared safety, EMC and RoHS documentation should be checked for the exact battery model and destination market before bulk procurement.
