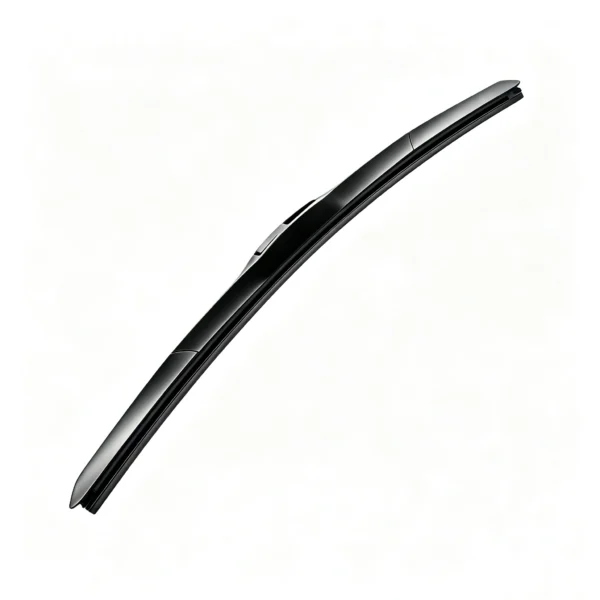

Universal U-Hook Three-Section Hybrid Wiper Blade 13–28 Inch

1. Product Overview

The KU-FV-09-001 is a three-section hybrid windshield wiper blade designed for passenger vehicles equipped with a compatible U-hook wiper arm. Available in lengths from 13 to 28 inches, the range supports automotive distributors, service workshops, retailers and vehicle-maintenance programs.

Its segmented frame, elastic steel support and rubber wiping element work together to distribute contact pressure across curved windshields for smooth and consistent wiping.

2. Wiping and Pressure Distribution

• Three-Section Hybrid Frame: The articulated structure follows the windshield curvature and distributes pressure across the blade.

• Elastic Steel Support: Helps maintain consistent contact between the rubber element and the glass throughout the wiping cycle.

• Rubber Wiping Element: Removes rainwater, light dirt and road spray from the windshield during normal use.

• Stable Blade Movement: The supported frame helps reduce blade lifting, vibration and uneven contact when correctly installed.

• Reduced Operating Noise: The wiping structure is designed to limit friction-related noise on a clean, suitable windshield.

3. Universal U-Hook Connection

• Standard U-Hook Interface: Compatible with selected passenger vehicles using a matching hook-style wiper arm.

• Double-Lock Adapter: Helps secure the blade to the wiper arm after installation.

• Tool-Free Installation: The blade can be installed manually without specialist workshop equipment.

• Integrated Adapter Cover: Closes over the connection point after the hook is correctly locked into position.

• Size Range for Distribution: Multiple lengths allow distributors and workshops to cover a wider range of vehicle applications.

4. Product Advantages

• Three-section structure provides improved pressure distribution on curved windshields.

• Rubber wiping element supports clear and consistent rainwater removal.

• U-hook adapter simplifies replacement on compatible wiper arms.

• Multiple stocked sizes support retail, wholesale and workshop requirements.

• Suitable for routine replacement across different seasons and weather conditions.

5. Installation Instructions

• Open the adapter cover on the center section of the wiper blade.

• Insert the vehicle’s U-hook wiper arm into the adapter channel.

• Pull the blade gently until the hook engages with the locking point.

• Check that the adapter is securely locked and cannot slide freely.

• Close the adapter cover before lowering the wiper arm.

• Remove the protective sleeve from the rubber element before operation.

Important Installation Note

The protective sleeve must be removed before using the wiper blade. Operating the blade with the sleeve installed may cause poor glass contact, incomplete wiping or abnormal noise.
