Silver Multifunctional Smart Ring
This silver multifunctional smart ring features 5ATM 50-meter waterproof performance, equipped with Dialog main control chip and Tianyi optical sensor. Adopting magnetic suction charging design and built-in 16mAh polymer battery, it supports 7-9 days of daily use and 10-15 days of ultra-long standby time. it realizes accurate heart rate, blood oxygen and sleep monitoring, as well as step counting, multi-sport tracking and camera control functions. Compatible with Android and iOS systems. All monitored data is for reference only and not applicable for medical use.
Share to:
1.Product Overview
This silver multifunctional smart ring is a finger-wearable health monitoring device with a fully enclosed ring structure. Equipped with an optical sensing module and powered by a magnetic charging compartment. It supports 24-hour heart rate, blood oxygen and sleep monitoring, built-in multiple sports modes and camera control functions, with a 5ATM waterproof rating.
2.Key Features
• Ring thickness of 2.8mm; overall weight of approximately 4.5g
•5ATM waterproof rating, supporting waterproof performance up to 50 meters depth
• 24-hour real-time monitoring of heart rate, blood oxygen and sleep structure; equipped with step counting, multi-sport modes and camera control functions
• Main control chip: Dialog DA14531; Heart rate sensor: Tianyi 3602
•Storage: 128kb ROM + 96Kb RAM
• Charging method: Magnetic suction charging
• System compatibility: Android 5.0 and above; iOS 10.0 and above
3.Materials & Construction
• Outer ring: silver metal body with combined matte and polished surface finish
• Internal integrated components: circuit board, optical sensor, polymer battery and magnetic charging contacts
•No physical‑button design
• Human‑computer interaction via Bluetooth connection with the APP
• Requires dedicated magnetic charging compartment for charging
4.Product Advantages
• Ultra-slim body brings zero-burden wearing experience for long-time use
•Fully enclosed 5ATM waterproof design allows wearing for swimming, snorkeling and other water-related scenarios
• Multi-dimensional health monitoring tracks heart rate, blood oxygen and deep & shallow sleep status; built-in diverse sports modes record exercise duration, distance, calories and other sports data
•Excellent battery performance: 10 days of regular use and 60 days of standby time, paired with user-friendly magnetic suction charging
• Compatible with mainstream Android and iOS mobile systems, supporting real-time data synchronization and viewing via the APP
| Item | Specifications |
|---|---|
| Water Proof | 5ATM waterproof, supports up to 50‑meter depth for diving and snorkeling |
| Material process | Ceramic & stainless steel glue‑pouring process |
| Size | #7(17.4mm),#8(18.2mm), #9(19.0mm), #10(19.9mm), #11(20.7mm), #12(21.5mm) |
| Weight | Approx. 4.5g |
| Color | Ceramic white, ceramic black, silver, silver‑medium gold, silver + edge gold, blue, gold‑plated black |
| Chipset (main chip model) | German Dialog DA14531, ultra‑low power, high durability |
| Memory (ROM+RAM) | 128kb ROM + 96Kb RAM |
| G‑Sensor | SC7A20 |
| Bluetooth Version | 5.1 |
| Mobile APP‑GPS | Yes |
| Heart rate sensor | Tianyi 3602 |
| Battery Type | Polymer Pure Cobalt Battery |
| Operating temperature range | 0‑50℃ |
| Battery Capacity | Approx. 16mAh |
| Charging time | 2 hours |
| Theory Standby time | 10‑15 days |
| Normal using time | 7‑9 days |

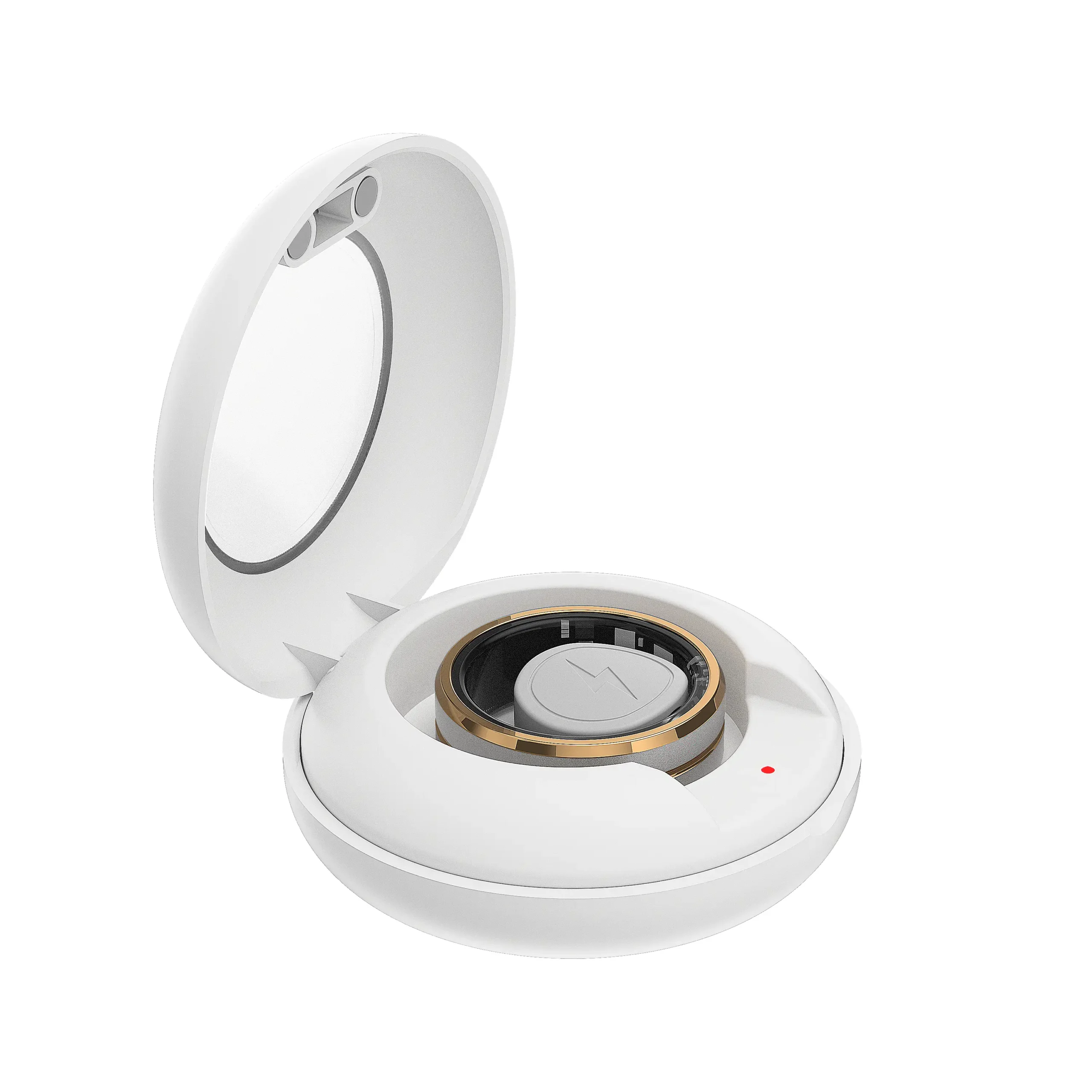

| Charging Method | Magnetic charging box |
1.Application
•All‑day daily wear
•Record fitness and sports data during workouts
• Sleep health monitoring
• Vibration notification alerts for office and daily‑life scenarios
• Remote access to relatives’ health data for family users
• Wearable for daily water‑contact scenarios
2.Package
•Product weight：4.5g
•Single Pack Dimension:83*82*27mm
•Full Set Weight per Unit:65 g
•One carton size:43* 30* 35cm
•Gross Weight:12.6KG
•Qty: 200 pcs / carton
