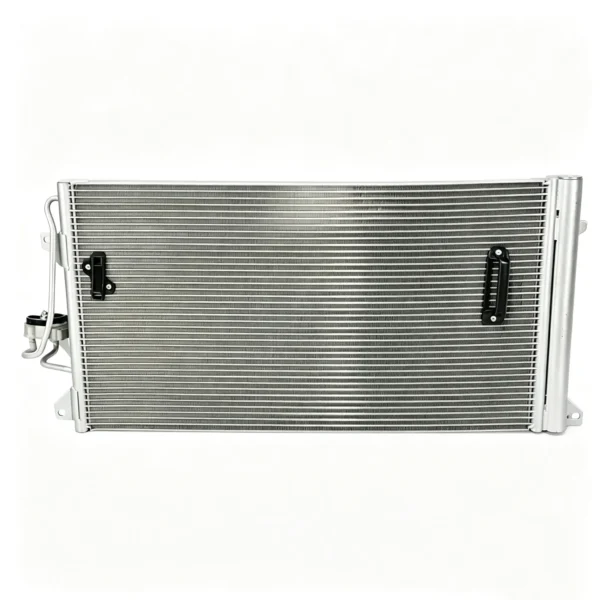

A/C Condenser for Audi Q7 Porsche Cayenne and Volkswagen Touareg

1. Multi-Platform Vehicle Fitment

The KU-FV-05-002 automotive A/C condenser is designed for selected Audi Q7, Porsche Cayenne and Volkswagen Touareg models. It provides aftermarket coverage for vehicles built on related SUV platforms while supporting multiple OE and industry interchange numbers.

Applicable vehicles include the Audi Q7 from 2006 to 2016, Porsche Cayenne from 2003 to 2010 and Volkswagen Touareg from 2004 to 2010. Compatibility varies by engine, production date and A/C system configuration. Buyers should confirm the OE number and VIN before ordering. OE cross-reference

2. Air-Conditioning Heat Exchange

• Refrigerant Heat Dissipation: Removes heat from the high-temperature, high-pressure refrigerant discharged by the A/C compressor.

• Condensation Process: Changes the refrigerant from a high-pressure gas into a high-pressure liquid before it flows toward the expansion device and evaporator.

• Fin-and-Tube Structure: Allows vehicle airflow and cooling-fan airflow to pass through the condenser and carry heat away from the refrigerant.

• Front-End Installation: Designed for installation in the vehicle’s front cooling module, where it receives continuous airflow during operation.

3. Replacement and Maintenance Value

• Cooling Performance Restoration: Suitable for replacing a condenser affected by refrigerant leakage, blocked passages, damaged fins or reduced heat-transfer performance.

• Road-Debris Exposure: Replaces front-mounted condensers damaged by stones, dirt and other road debris.

• Service Inspection: Condenser fins should be inspected regularly for impact damage, contamination and restricted airflow.

• System Cleanliness: A contaminated A/C circuit should be cleaned correctly before a replacement condenser is installed.

• Compressor Failure Service: When a compressor fails internally, technicians should inspect the complete refrigerant circuit and replace contaminated components as required.

4. Professional Installation Requirements

• Refrigerant Recovery: Existing refrigerant must be recovered using suitable automotive A/C service equipment before disassembly.

• Connection Inspection: Seals, fittings and refrigerant lines should be checked during replacement.

• Vacuum and Leak Testing: The completed system must be evacuated and tested for leakage before refrigerant is added.

• Correct Refrigerant Charging: Recharge the system according to the vehicle manufacturer’s specified refrigerant type and filling quantity.

• Workshop Installation: Replacement should be performed by trained technicians with appropriate recovery, vacuum and pressure-testing equipment.
