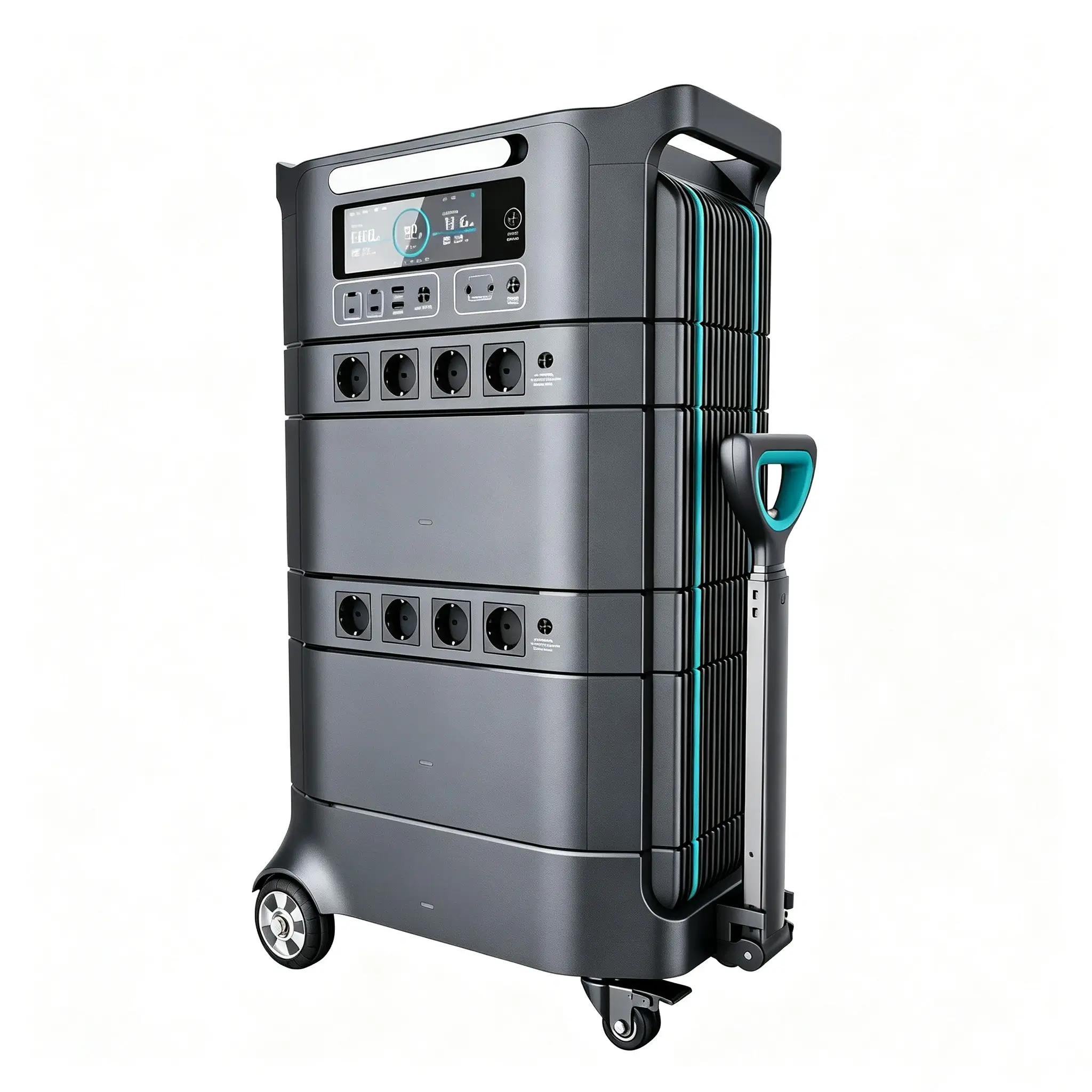

6600W 6394Wh LiFePO4 Energy Storage System with 12 AC Outlets and Solar Input
A 6600 W energy storage system equipped with a 6394 Wh LiFePO4 battery, 12 pure sine wave AC outlets and multiple USB and DC outputs. It supports high-power AC charging and up to 1000 W XT60 input from compatible solar or vehicle charging sources.
1. High-Output Energy Storage System
The KU-OG-03-001 combines a 6600 W rated output with a 6394 Wh LiFePO4 battery for residential backup, mobile operations and temporary commercial power. Its multi-output design allows compatible appliances, electronic equipment and DC devices to be connected within the system’s rated limits.
2. Multi-Channel Pure Sine Wave Output
• 230 V Version: Provides three 2200 W pure sine wave output channels with a combined capacity of 6600 W.
• 120 V Version: Provides three 2000 W pure sine wave output channels with a combined capacity of 6000 W.
• Twelve AC Outlets: Support organized power distribution for multiple compatible devices.
• Pure Sine Wave Supply: Suitable for compatible computers, communication equipment, appliances and electronically controlled devices.
3. USB and DC Power Distribution
• Four USB-C Ports: Provide up to 100 W per port for compatible laptops and USB Power Delivery devices.
• Two Fast-Charging USB-A Ports: Support compatible phones, tablets and portable electronics.
• Vehicle-Style DC Output: Provides 12 V/10 A output through the cigarette-lighter socket.
• Dual DC5521 Outputs: Supply up to 36 W total for compatible 12 V DC equipment.
• XT60 Output: Provides up to 360 W for suitable external DC devices.
4. High-Power Charging Options
• AC Charging: Supports up to 6600 W total input on the 230 V version and 5400 W on the 120 V version.
• XT60 Charging Input: Accepts 11–100 V DC at up to 1000 W.
• Solar Charging Support: Enables connection to a compatible solar array within the specified voltage and current limits.
• Vehicle Charging Support: The XT60 input can also be used with a suitably configured vehicle charging source.
5. Long-Life LiFePO4 Battery
• 6394 Wh Battery Capacity: Provides stored energy for extended backup and mobile-power applications.
• 48 V Battery Platform: Supports the system’s high-output inverter and DC power architecture.
• 3500 Cycles to 80% Capacity: Provides a defined service-life reference under the supplier’s stated test conditions.
• 6500 Cycles to 50% Capacity: Supports longer-term operation as usable battery capacity gradually declines.
6. B2B Procurement Benefits
• Combines AC, USB and DC power distribution in one integrated system.
• Regional 120 V and 230 V versions support different destination markets.
• Suitable for energy-system integrators, backup-power suppliers and equipment distributors.
• Multiple charging methods support mains, compatible solar and vehicle-based energy sources.
• Listed compliance documents should be checked against the exact product configuration and destination-market requirements.
| Item | Parameter |
|---|---|
| SKU | KU-OG-03-001 |
| Rated Output Capacity | 6600 W |
| Battery Capacity | 6394 Wh |
| Battery Voltage | 48 V |
| Net Weight | 82.4 kg |
| Product Dimensions | 530 × 330 × 820 mm |
| AC Outlet Quantity | 12 ports |
| USB-A Port Quantity | 2 ports |
| USB-C Port Quantity | 4 ports |
| DC5521 Port Quantity | 2 ports |
| 230 V AC Output | Pure sine wave, 2200 W × 3, 6600 W total |
| 230 V AC Output Range | 200–240 VAC, 10 A max., 50/60 Hz |
| 120 V AC Output | Pure sine wave, 2000 W × 3, 6000 W total |
| 120 V AC Output Range | 100–120 VAC, 15 A max., 50/60 Hz |
| USB-A Fast-Charging Output | 5 V/2.4 A, 9 V/2.0 A, 12 V/1.5 A, 18 W max. per port |
| Total USB-A Output | 36 W max. |
| USB-C Output | 5 V/3.0 A, 9 V/3.0 A, 12 V/3.0 A, 15 V/3.0 A, 20 V/5.0 A, 100 W max. per port |
| Total USB-C Output | 200 W max. |
| Car Charger Output | 12 V/10 A, 120 W max. |
| DC5521 Output | 12 V/3 A, 36 W max. total |
| XT60 Output | 12 V/30 A, 360 W max. |
| 230 V AC Charging Input | 180–260 VAC, 50/60 Hz, 10 A max. per port, 6600 W max. total |
| 120 V AC Charging Input | 80–135 VAC, 50/60 Hz, 15 A max. per port, 5400 W max. total |
| XT60 Charging Input | 11–100 V DC, 12 A max., 1000 W max. |
| Supported XT60 Sources | Compatible solar panel or vehicle charging system |
| Battery Cycle Life | 3500 cycles to 80% capacity; 6500 cycles to 50% capacity |
| Operating Temperature | +20°C to +30°C |
| Discharging Temperature | −20°C to +45°C |
| Charging Temperature | 0°C to +45°C |
| Storage Temperature | −20°C to +45°C |
| Battery Chemistry | LiFePO4 |
| AC Waveform | Pure sine wave |
| Declared USA Standards | FCC, UL 2743, UL 1741, UL 1977, UL 1778, California Proposition 65, CEC and DOE |
| Declared Canada Standard | ICES |
| Declared European Standards | EN 55032, RoHS, EN 62368-1 and EN 62040 |
| Declared Australian Standards | AS/NZS 4763, AS/NZS 62368-1, AS/NZS CISPR 32 and CEC |
1. Applications
• Home backup power
• Emergency power supply
• Mobile workstations
• Residential energy storage
• Compatible solar power systems
• Temporary commercial power
• Field service and maintenance
• Communication and IT equipment
• Compatible household appliances
2. Package
Included Components
• Energy Storage System: 1 unit
