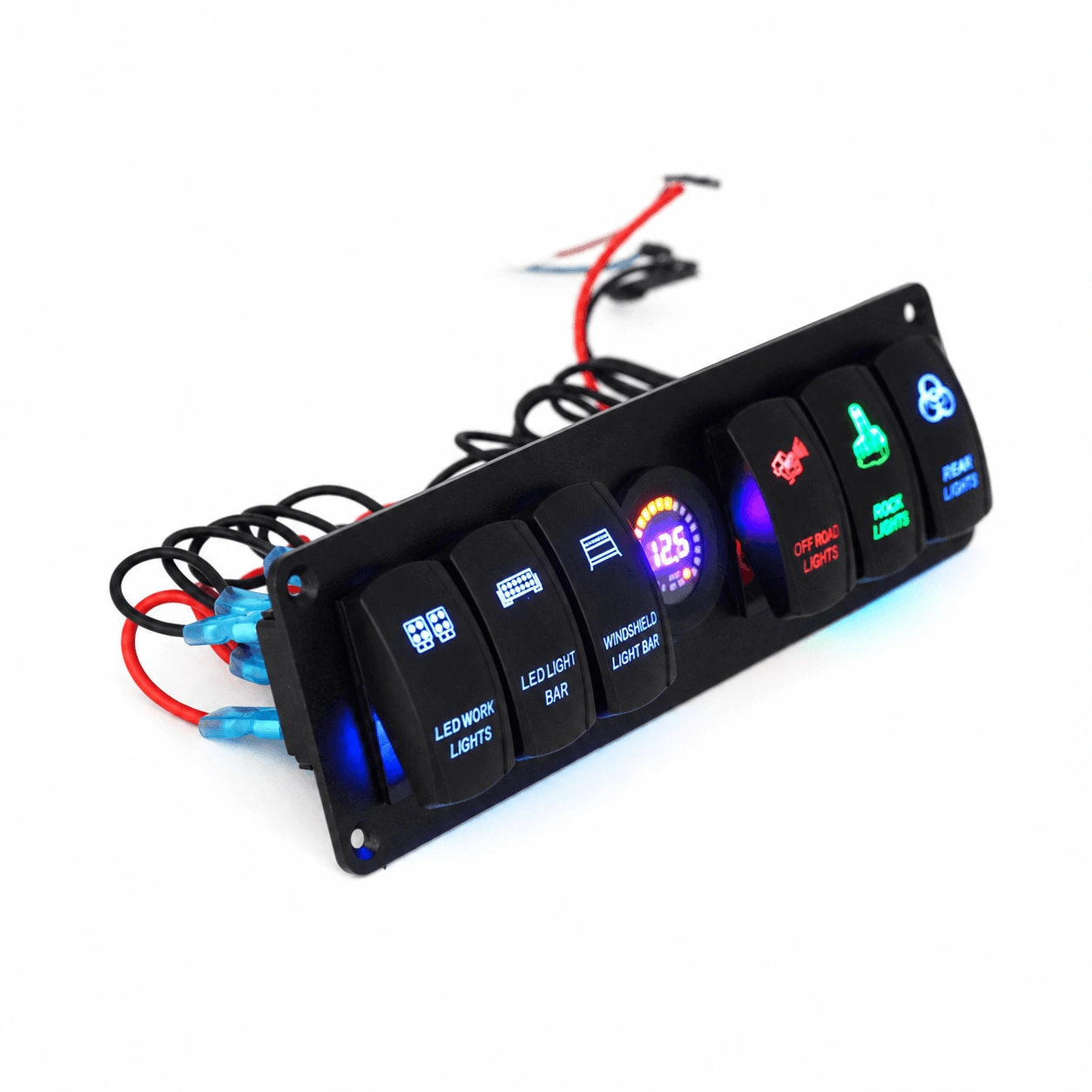

6-Gang 12V–24V Rocker Switch Panel with Digital Voltmeter
A 6-gang 12–24 V DC rocker switch panel combining six illuminated ON/OFF switches with a central digital voltmeter. It provides organized control of compatible auxiliary electrical equipment in vehicles, RVs, off-road vehicles and suitably protected boat installations.
Share to:
1. Six-Gang Auxiliary Equipment Control
The KU-FV-13-003-1 combines six illuminated rocker switches and a central digital voltmeter in one control panel. It provides a centralized interface for controlling compatible auxiliary electrical equipment in 12 V and 24 V DC systems.

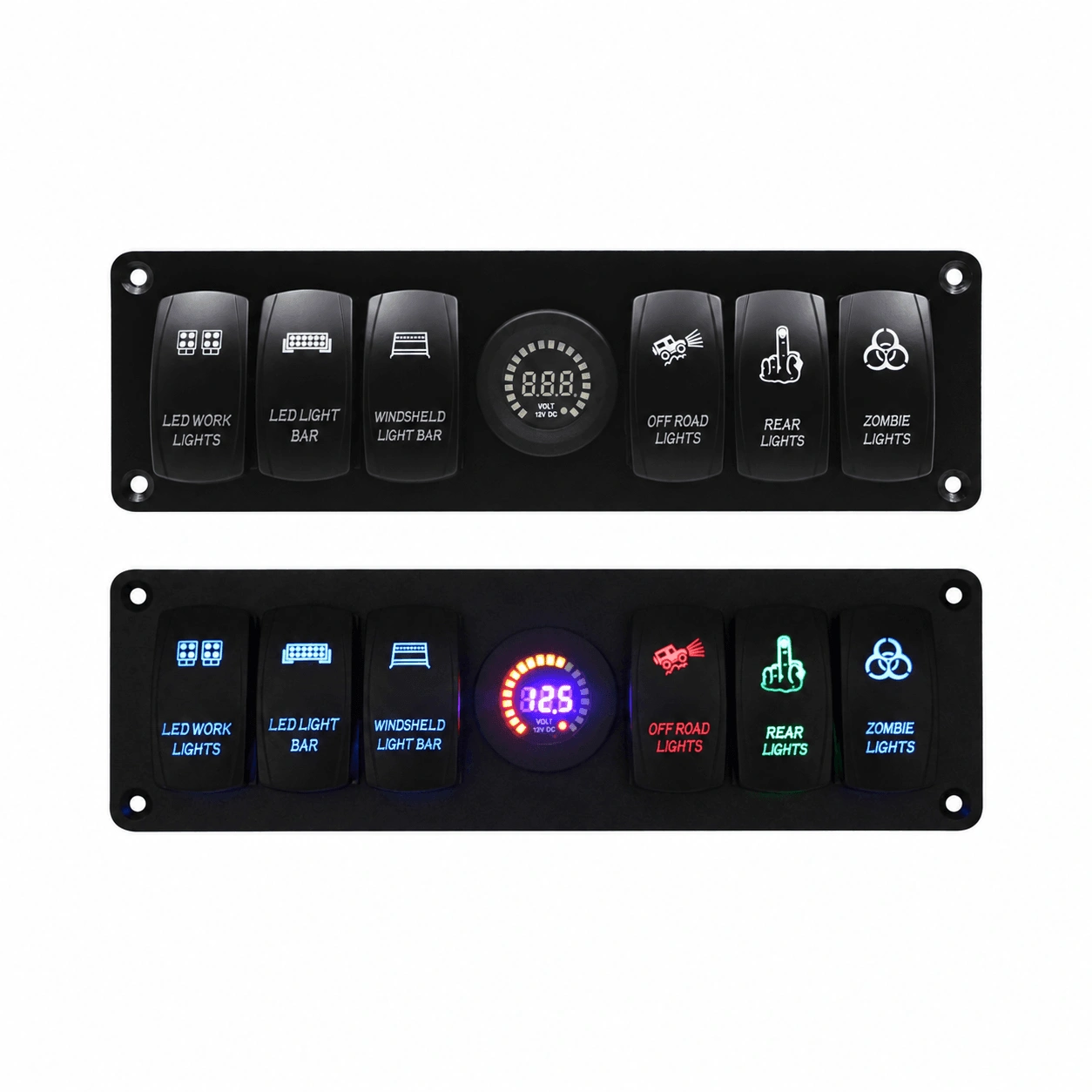

2. Illuminated ON/OFF Rocker Switches
• Six Rocker Switches: Provide individual ON/OFF control for six compatible auxiliary electrical circuits.
• Illuminated Design: Integrated switch lighting helps users identify the control positions.
• Optional Light Colors: Available switch-light colors include blue, red, green, white and orange.
• Centralized Configuration: Six control positions are arranged in one panel for organized equipment operation.
3. Digital Voltage Display
• Central Digital Voltmeter: Displays the operating voltage of the connected DC electrical system.
• Integrated Layout: The voltmeter is positioned in the center of the panel for convenient viewing.
• DC 12–24 V Compatibility: Designed for common 12 V and 24 V vehicle electrical systems.
4. Installation and B2B Value
• Auxiliary Equipment Control: Suitable for compatible lighting and other auxiliary DC electrical equipment.
• Multiple Applications: Can be installed in compatible vehicles, RVs, off-road vehicles and suitably protected locations in boats.
• Circuit Protection Requirements: Connected loads must remain within the ratings of the switches, wiring and electrical system.
• Installation Components: Suitable fuses, relays and circuit-protection devices may be required according to the connected load.
• Distribution Applications: Suitable for automotive electrical accessory wholesalers, RV accessory suppliers, vehicle upfitters and automotive installers.
| Item | Parameter |
|---|---|
| Model | KU-FV-13-003 |
| Product Type | 6-gang rocker switch panel with digital voltmeter |
| Panel Configuration | 6 rocker switches and 1 central digital voltmeter |
| Number of Rocker Switches | 6 |
| Switch Function | ON/OFF |
| Operating Voltage | DC 12–24 V |
| Maximum Current Rating | 20 A at 12 V / 10 A at 24 V |
| Display Module | Central digital voltmeter |
| Switch Lighting | Illuminated |
| Switch Light Color Options | Blue / Red / Green / White / Orange |
1. Applications
• Centralized auxiliary electrical control
• Vehicle accessory installations
• Auxiliary-light control
• RV electrical accessory installations
• Off-road vehicle electrical installations
• Protected boat electrical installations
• Compatible 12 V DC electrical systems
• Compatible 24 V DC electrical systems
2. Package
Packaging information and included accessories were not provided. Package contents should be added after confirmation with the supplier.
