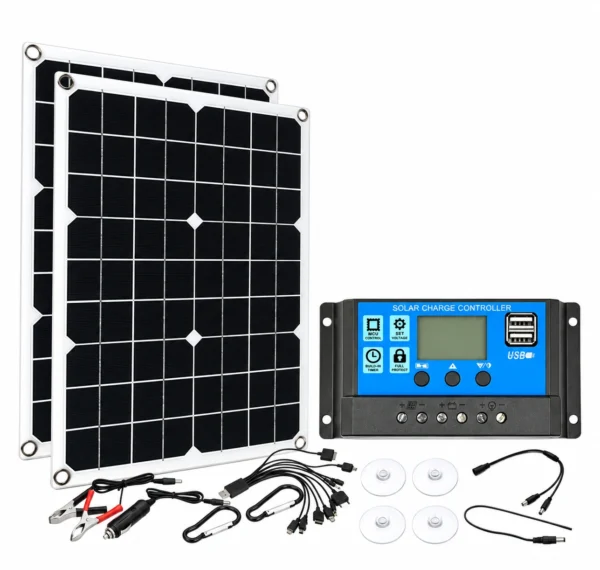

40W Dual Monocrystalline Solar Panel Kit with Charge Controller
This 40W solar panel kit includes two monocrystalline panels and a charge controller for small outdoor charging setups. Each panel measures 420 × 280 × 3 mm. Suction cups and connection accessories are listed with the two-panel package.
Share to:
1. Two-panel solar kit
This kit pairs two monocrystalline solar panels with a charge controller. The supplied specifications list 40W for the two-panel configuration, with a 16V output voltage and 2.5A output current. It is intended for small outdoor charging setups where the panels can be placed in direct sunlight.
2. Portable mounting and connections
Each panel measures 420 × 280 × 3 mm. The listed kit includes eight suction cups, a splitter cable and charging accessories. This configuration is suited to temporary setups for camping and travel; check that the mounting surface and electrical connections are appropriate before use.
3. Controller selection
The controller is supplied as part of this two-panel option. Its current rating should be selected to match the intended battery and wiring arrangement. Controller ratings are separate from the solar panels’ stated 2.5A output current.
| Parameter | Specification |
|---|---|
| Product Type | Dual monocrystalline solar panel kit with charge controller |
| Stated Kit Power | 40 W |
| Number of Panels | 2 |
| Solar Cell Type | Monocrystalline |
| Open-Circuit Voltage | 20.8 V DC |
| Short-Circuit Current | 2.8 A |
| Stated Output Voltage | 16 V DC |
| Stated Output Current | 2.5 A |
| Dimensions per Panel | 420 × 280 × 3 mm |
| Stated Protection Rating | IP65 |
| Operating Temperature | -40°C to +85°C |
| Listed Package Dimensions | 450 × 300 × 35 mm |
| Listed Package Weight | 1.2 kg |
Applications
- Temporary outdoor solar charging setups
- Camping and travel
- Small battery-charging setups with a compatible controller and battery
Two-Panel Kit Contents
- Monocrystalline solar panels × 2
- Solar charge controller × 1
- Suction cups × 8
- Battery clips × 1 set
- Cigarette-lighter adapter × 1
- 10-in-1 charging cable × 1
- Carabiners × 4
- Splitter cable × 1
- User manual × 1
