3600W 3225.6Wh LiFePO4 Portable Power Station with 7200W Peak Output

1. High-Output Portable Energy Storage

The KU-OG-01-003 is a high-capacity portable power station designed for residential backup, outdoor operations and mobile commercial use. It provides 3600 W rated AC output, 7200 W peak power and a 3225.6 Wh LiFePO4 battery for operating compatible appliances, power tools and electronic equipment.

2. Large-Capacity LiFePO4 Battery

• 3225.6 Wh Energy Capacity: Supports extended operating time for compatible high-power and low-power devices.
• 51.2 V Battery Platform: Uses a 63000 mAh battery configuration for large-scale portable energy storage.
• 4000+ Battery Cycles: The stated cycle life applies until the battery reaches approximately 80% end-of-life capacity.
• LiFePO4 Chemistry: Suitable for applications requiring frequent charging and long-term energy-storage use.

3. Multi-Device Power Distribution

• Three AC Outlets: Provide pure sine wave power through either the 120 V or 230 V regional version.
• 140 W USB-C Port: Supports compatible laptops and other USB Power Delivery devices.
• Four Quick-Charge USB-A Ports: Allow multiple mobile devices and accessories to be charged simultaneously.
• Dual-Voltage DC Outputs: Include 12 V and 24 V connections for compatible DC equipment.
• 252 W Combined USB Output: Supports centralized charging for multiple USB-powered devices.

4. Charging, UPS and Grid Functions

• 1500 W AC Charging: Supports higher-power charging through the appropriate regional mains input.
• 1500 W Solar Input: The XT60 port accepts 25–145 V DC input from a compatible solar array.
• UPS Operation: Provides a stated transfer time of ≤10 ms for compatible connected equipment.
• Adjustable Grid-Connected Function: Supports up to 800 W under a suitable system configuration. Grid-connected operation must comply with destination-market electrical requirements.

5. Mobile Equipment Design

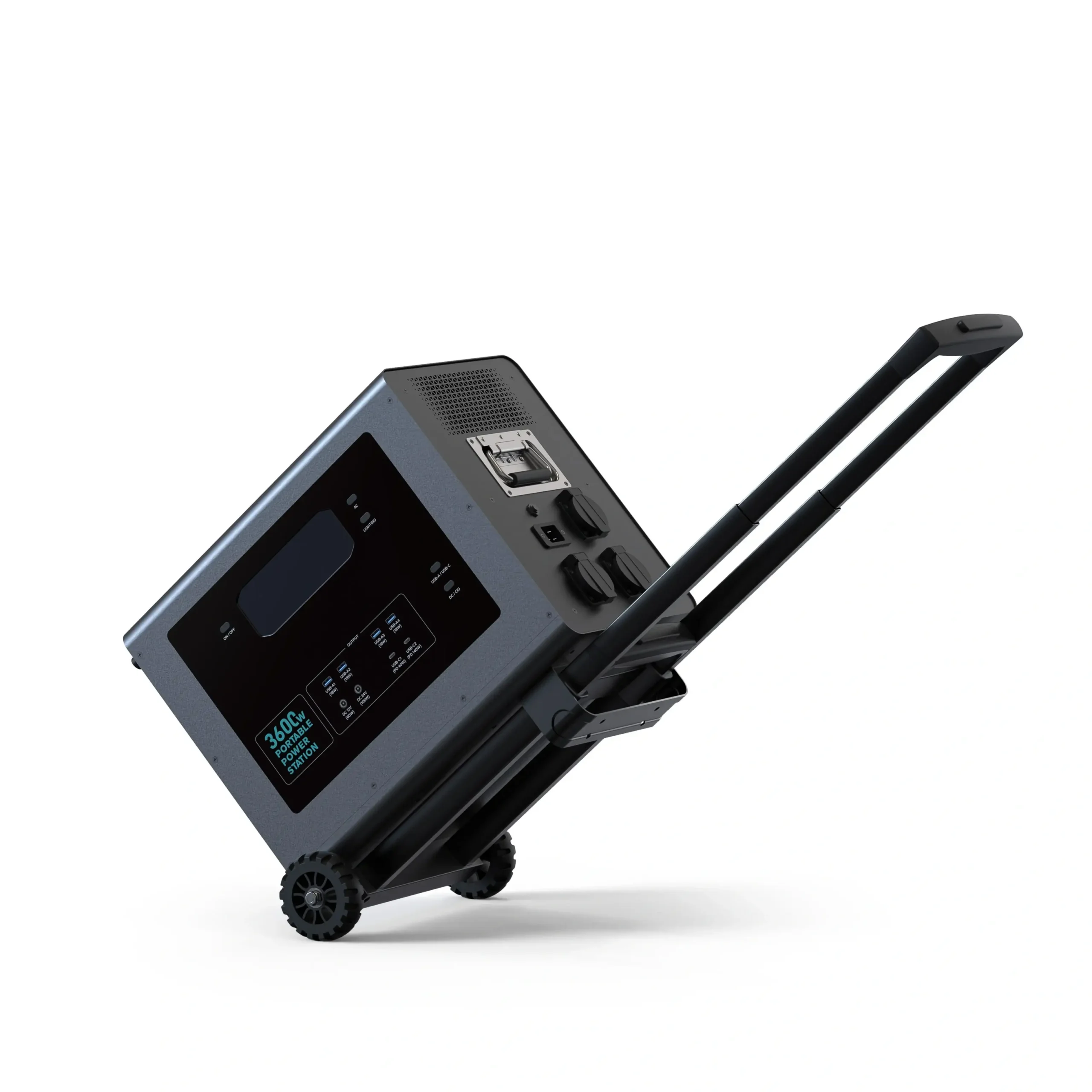

• Wheeled Construction: Integrated wheels assist with moving the 44.5 kg unit between operating locations.
• Extendable Pull Handle: Supports easier positioning at campsites, work areas and temporary power locations.
• Integrated Lighting: A built-in 3 W light provides localized illumination during power interruptions or outdoor use.
• Wide Discharge Range: Supports operation from −20°C to +45°C under suitable conditions.

6. Reference Operating Times

• Air conditioner at 1000 W: Approximately 3.2 hours
• Electric kettle at 800 W: Approximately 4.0 hours
• Electric drill at 800 W: Approximately 4.0 hours
• Washing machine at 800 W: Approximately 4.0 hours
• Television at 120 W: Approximately 26.8 hours

Actual operating time varies according to startup demand, load profile, inverter losses, battery condition, ambient temperature and equipment operating cycles.
