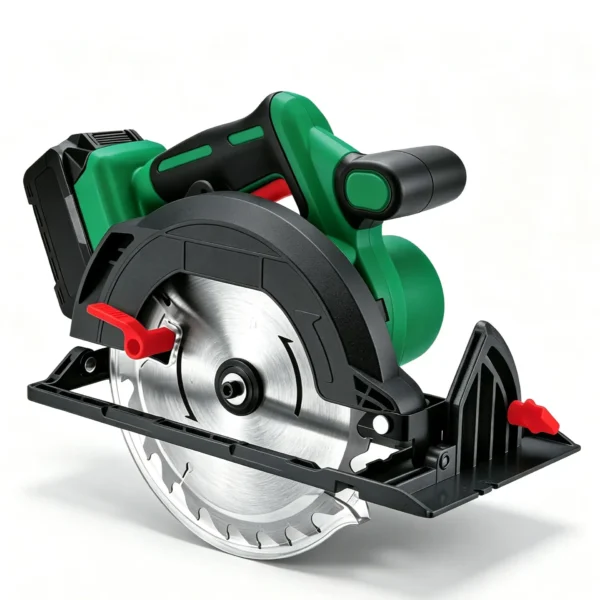

21V Cordless Circular Saw with 185 mm Blade and Dual 4.0 Ah Batteries
The KU-IS-01-006 is a 21V cordless circular saw equipped with a 185 mm blade and a no-load speed of 3,600 RPM. It provides cutting depths of up to 65 mm at 90° and 43 mm at 45° for straight and bevel-cutting applications.
1. Product Overview
The KU-IS-01-006 cordless circular saw combines a 185 mm blade, a 3,600 RPM no-load speed and adjustable cutting angles for portable cutting work. Its dual 21 V, 4.0 Ah battery configuration supports jobsite, workshop, construction and woodworking applications.
2. Key Features
• 185 mm Saw Blade: Uses a 185 mm blade with a 20 mm bore and 24-tooth configuration.
• 65 mm Cutting Capacity: Provides a maximum cutting depth of 65 mm at 90°.
• 45° Bevel Cutting: Provides a maximum cutting depth of 43 mm at a 45° cutting angle.
• 3,600 RPM No-Load Speed: Supports efficient cutting with compatible materials and blades.
• Dual Battery Configuration: Supplied with two 21 V, 4.0 Ah batteries to reduce interruptions between charging cycles.
3. Cutting Performance
• Straight Cutting: The 90° setting supports cutting depths of up to 65 mm.
• Bevel Cutting: The 45° setting supports angled cuts with a maximum depth of 43 mm.
• Guide Fence: Helps maintain a consistent cutting line during straight cutting.
• 24-Tooth Blade: The supplied blade is configured for general-purpose cutting with compatible materials.
4. Product Advantages
• Cordless operation provides flexibility for workshops and jobsites without a continuous power supply.
• Two 4.0 Ah batteries support more continuous operation between charging cycles.
• The supplied guide fence supports controlled straight cutting.
• A saw blade and hex key are included for installation and adjustment.
• Suitable for tool distributors, construction projects, carpentry and maintenance applications.
| Item | Parameter |
|---|---|
| Product SKU | KU-IS-01-006 |
| Product Type | Cordless Circular Saw |
| No-Load Speed | 3,600 RPM |
| Maximum Cutting Depth at 90° | 65 mm |
| Maximum Cutting Depth at 45° | 43 mm |
| Saw Blade Diameter | 185 mm |
| Blade Bore Diameter | 20 mm |
| Blade Tooth Count | 24T |
| Motor Model | 6035 |
| Battery Voltage | 21 V |
| Battery Capacity | 4.0 Ah × 2 |
| Battery Discharge Rate | 15C |
| Charger Output Current | 2.0 A |
1. Applications
• Straight cutting
• 45° bevel cutting
• Wood and compatible panel cutting
• Carpentry and furniture production
• Construction and renovation work
• Workshop and maintenance applications
2. Package
• Cordless Circular Saw: 1 pc
• 21 V, 4.0 Ah Battery: 2 pcs
• 2.0 A Charger: 1 pc
• 185 × 20 mm, 24T Saw Blade: 1 pc
• Guide Fence: 1 pc
• Hex Key: 1 pc
• Instruction Manual: 1 copy
• Packing Method: Color box and master carton
• Individual Package Dimensions: 34 × 20 × 30.5 cm
• Master Carton Dimensions: 68 × 40 × 30.5 cm
• Master Carton Volume: 0.083 m³
• Gross Weight per Master Carton: 17.5 kg
• Quantity per Master Carton: 4 pcs
• Production Lead Time: 15–20 days
• Sample Availability: In stock
