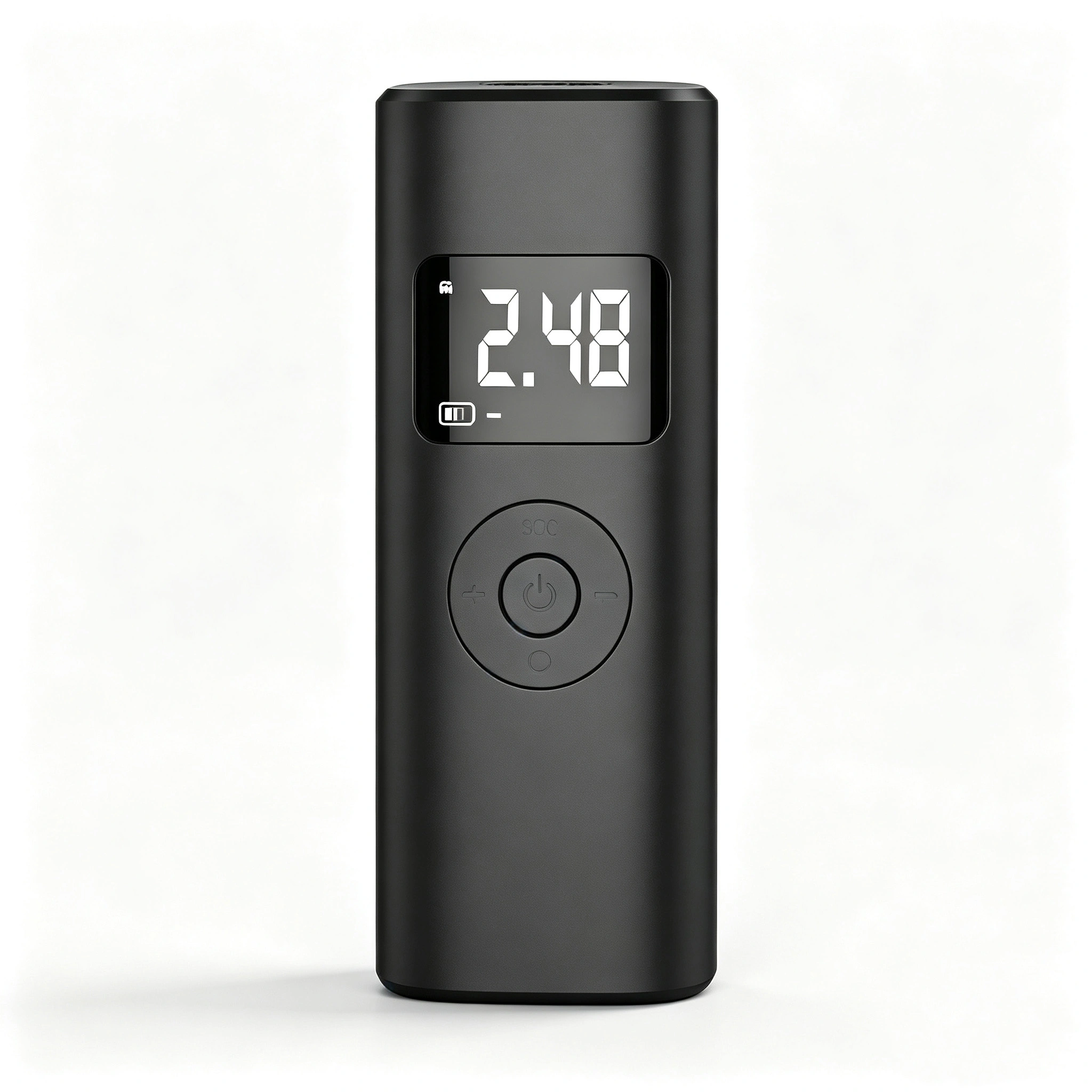

20mm Metal-Housing Cordless Tire Inflator with 25L/min Airflow and Auto Shut-Off

KU-FV-11-003

Metal-housing cordless tire inflator featuring a large 20 mm cylinder, 25 L/min airflow and 150 PSI maximum pressure. Its sandblasted anodized finish, automatic shut-off, rechargeable battery, power bank output, LED illumination and flashing warning mode support portable automotive and roadside use.

1. Metal Housing and Surface Finish

The KU-FV-11-003 features a durable metal housing with a sandblasted anodized finish, providing a clean industrial appearance and improved resistance to everyday surface wear. Its compact construction is suitable for vehicle storage, roadside kits and portable automotive applications.

2. Efficient Inflation System

• Large 20 mm Cylinder: Delivers efficient air compression for routine tire pressure adjustment.
• 25 L/min Airflow: Supports faster inflation of compatible vehicle tires and inflatable products.
• 150 PSI Maximum Pressure: Covers a broad range of everyday inflation requirements.
• Automatic Shut-Off: Stops the compressor automatically when the target pressure is reached.
• Pressure Monitoring: Measures inflation pressure with a stated accuracy of ±5 PSI.

3. Integrated Roadside Functions

• Cordless Operation: The built-in 2000 mAh rechargeable battery supports portable use away from a fixed power source.
• Power Bank Output: Provides emergency charging for compatible portable electronic devices.
• LED Illumination: The integrated 20 lm light assists with nighttime inflation and vehicle inspection.
• Flashing Warning Light: Helps increase roadside visibility during low-light emergencies.

4. Distribution and Retail Benefits

• Metal construction differentiates the product from conventional plastic-housing inflators.
• Combines tire inflation, emergency lighting and portable power functions in one device.
• Compact multifunctional format is suitable for automotive accessory retailers and emergency-kit suppliers.
• Suitable for wholesale distribution, retail programs and customized automotive accessory projects.

Item Parameter
SKU KU-FV-11-003
Cylinder Diameter 20 mm
Input Voltage 5 V DC
Operating Voltage 7.4–12 V DC
Maximum Power 60 W
Maximum Current <6 A
Maximum Airflow 25 L/min
Battery Capacity 2000 mAh
LED Luminous Flux 20 lm
Maximum Pressure 150 PSI
Pressure Accuracy ±5 PSI
Operating Temperature −20°C to +60°C
Housing Material Metal
Product Type Cordless tire inflator
Automatic Shut-Off Supported
Power Bank Function Supported
Surface Finish Sandblasted anodized finish
Lighting Functions LED illumination and flashing warning light

1. Applications

• Bicycle tire inflation
• Motorcycle tire inflation
• Passenger-car tire top-ups
• Routine tire pressure adjustment
• Roadside emergency inflation
• Compatible inflatable products

2. Package

Included Components

• Cordless Tire Inflator: 1 pc
