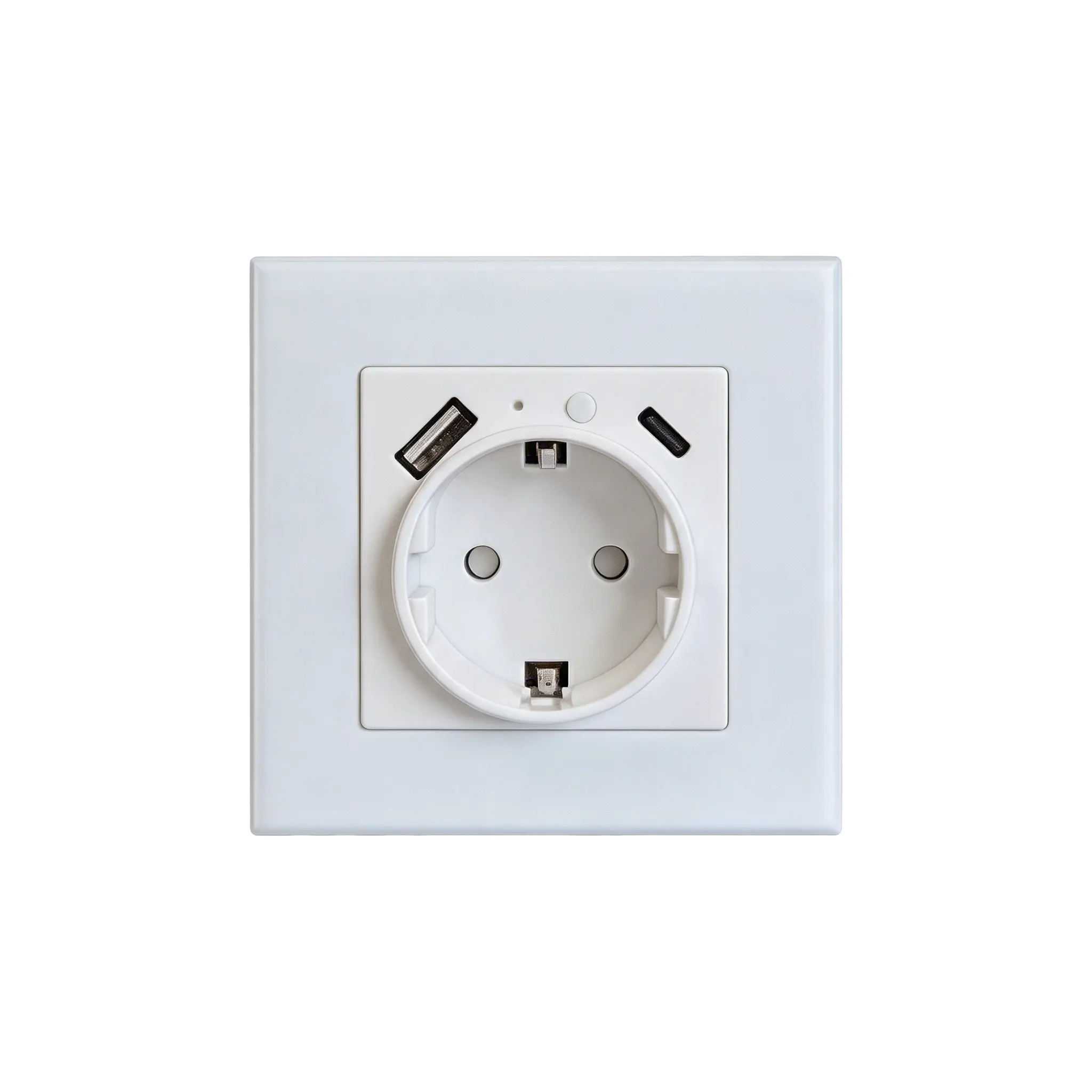

2‑in‑1 Wall‑Mounted Smart Panel
This 2‑in‑1 wall‑mounted smart panel integrates Wi‑Fi smart switch and EU‑standard socket with USB ports. It features tempered glass front panel and ABS+PC flame‑retardant housing. Supports single‑wire wiring, compliant with EU/UK/FR installation standards. Smart switch control is realized via Tuya APP, suitable for concealed wall retrofit installation.
1.Key Features
• Single live wire wiring design, some old wiring can be installed without a neutral wire; Load with power less than 5W requires external matching capacitors
• The integrated panel is equipped with both intelligent switch circuit and European standard USB socket power supply interface
• Tempered glass panel, shell made of ABS+PC material, flame retardant grade 94-V0
• Only supports 2.4GHz WiFi network, does not support 5G WiFi
• Standby power consumption 0.5W
• The mechanical service life can reach 100000 times, meeting the requirements of frequent on-off
2.Materials & Construction
• Built with industry-standard materials and manufacturing processes for export-ready quality
3.Product Advantages
• Cost-effective solution for engineering and project bulk purchasing
• OEM/ODM customization and stable supply chain support
| Item | Parameter |
|---|---|
| Applicable Standards | EU / UK / FR |
| Product Dimensions | 157×86×35mm |
| Panel Material | Tempered Glass |
| Housing Material | ABS+PC, Flammability Rating: UL94‑V0 |
| Available Colors | White, Black, Grey |
| Wiring Mode | Single‑wire control; external capacitor required for low‑power load (<5W) |
| Input Voltage | 100‑240VAC, 50/60Hz |
| Max Current | 10A |
| Per‑channel Load Power | 5‑400W / channel |
| Standby Power Consumption | 0.5W |
| Wi‑Fi | 2.4GHz 802.11b/g/n, 5G Wi‑Fi not supported |
| Compatible OS | iOS 8.0 and above, Android 4.3 and above |
| Language Support | 21 languages |
| Mechanical Lifespan | 100000 times |
| Operating Temperature | ‑20℃ ~ +50℃ |
| Mounting Hole Spacing | 60mm |
| Certifications | CE, FCC, ROHS |
1.Applications
• Concealed wall‑mount installation
• Smart switch circuit controls power on/off for loads such as lighting fixtures
• EU‑standard socket with USB ports supplies power and charging for electrical appliances and digital devices
• Compatible with Tuya ecosystem for intelligent management and control
• Concealed wall installation for residential premises complying with EU/UK/FR standards
• Integrated renovation of indoor lighting and sockets for apartments and hotels
• Intelligent interior renovation for offices
• Supporting component for smart home engineering projects
2.Package
• Product main unit
• Standard accessories kit
• User manual
• Color box/Outer carton
•Unit Pack Size：169*95*40mm
•Carton Size：37*28*30cm
•Carton Gross Weight: 11.4kg/ctn
